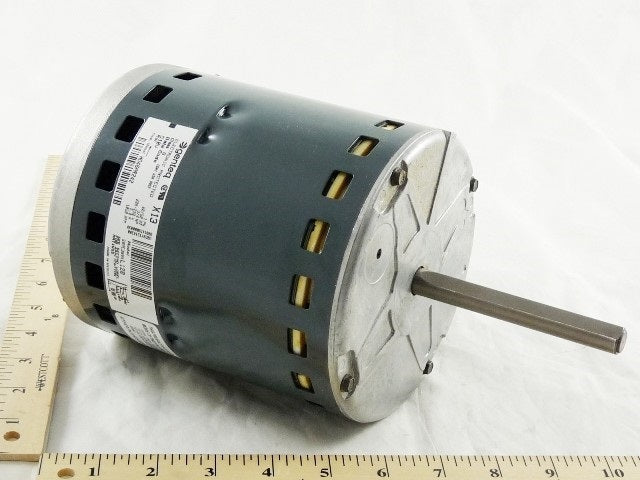

Carrier 1178208 mtr blr 1/230 3/4 hp frame 48 replaces hd46ar242

Product Description

The CARRIER 1178208 is a 3/4 HP ECM blower motor designed for HVAC systems. This 1-phase motor operates at 208-230V and 1050 RPM, featuring a Frame 48 design. It converts electrical energy into mechanical energy to turn the furnace blower, ensuring efficient air circulation. This motor is a direct replacement for old part number HD46AR242.

• 3/4 HP, 208-230V, 1050 RPM operation for consistent performance.
• ECM (Electronically Commutated Motor) technology with a Frame 48 design.
• Features a 4-inch shaft extension and 1/2-inch shaft diameter.

Product Highlights

Efficient 3/4 HP ECM blower motor for HVAC applications, offering reliable performance and energy savings.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: 1178208

Technical Specifications

• Brand: Carrier
• MPN: 1178208
• Horsepower: 3/4 HP
• Input Voltage: 208-230V
• Phase: 1
• RPM: 1050
• Rotation: CCWLE
• Frame Size: 48
• Motor Type: ECM Blower
• GE Genteq MPN: 5SME39NXL308
• Replaces MPN: HD46AR242
• Motor Diameter: 5 5/8 inches
• Shaft Extension: 4 inches
• Shaft Diameter: 1/2 inch
