Carrier 1177912 fan motor 1/4 hp 208-230v 5 5/8 inch diameter 825 rpm CCW rotation 1.25 inch shaft

Product Description

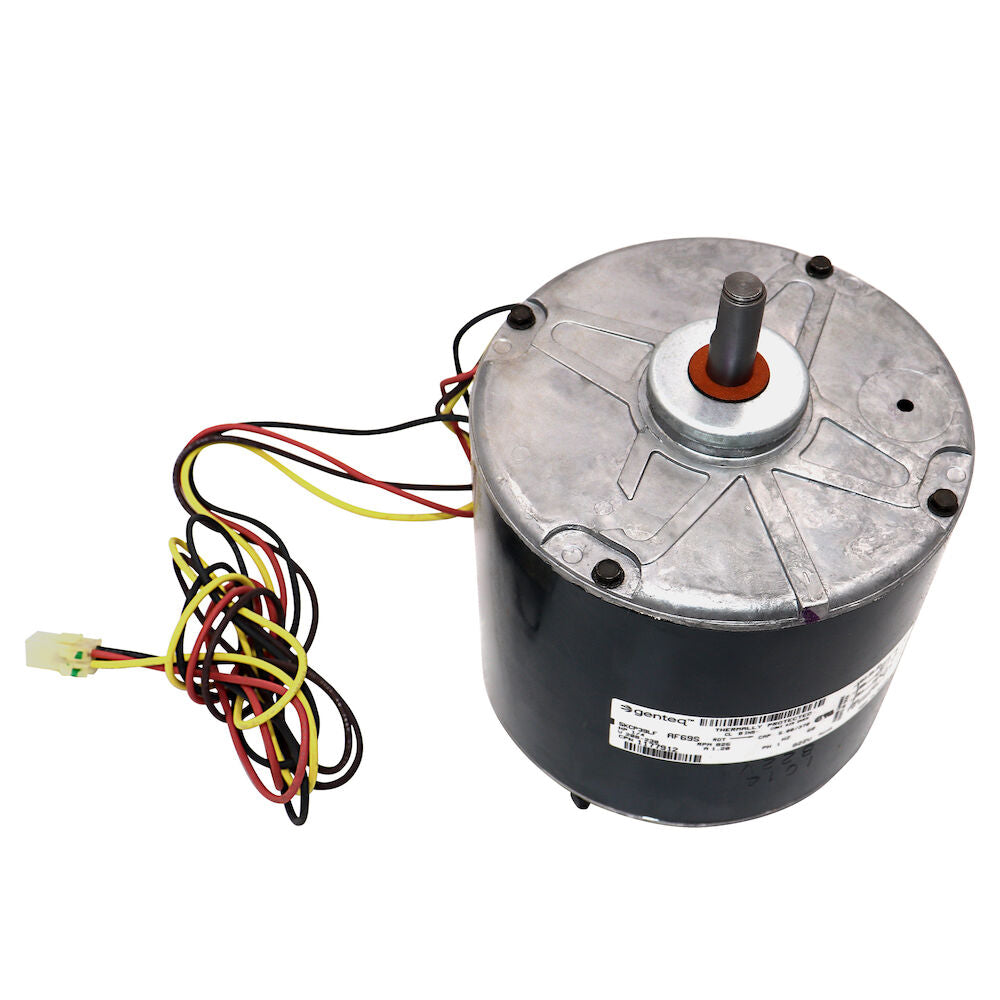

The CARRIER 1177912 Fan Motor is a 2-speed condenser fan motor designed for HVAC systems. This 1/4 HP motor operates at 208-230V and 825 RPM, converting electrical energy into mechanical energy to power air conditioning fan blades. It features a 5 5/8 inch diameter (Frame 48Y) and a 1.25 inch shaft extension, with counter-clockwise rotation when viewed with the shaft up.

• 1/4 HP, 208-230V, 825 RPM operation for efficient air movement.
• 5 5/8 inch diameter (Frame 48Y) with a 1.25 inch shaft extension.
• Features 2-speed functionality and counter-clockwise rotation (shaft up).

Product Highlights

This CARRIER 1177912 Fan Motor is a 1/4 HP, 208-230V, 825 RPM condenser fan motor suitable for various HVAC applications.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: 1177912
• Country of Origin: Imported

Technical Specifications

• Manufacturer Part Number: 1177912
• Brand: CARRIER
• Reference ID: CARRIER1177912
• Inventory SKU: 1177912
• Horsepower: 1/4 HP
• Input Voltage: 208-230V
• RPM: 825 RPM
• Diameter: 5 5/8 inches
• Frame Size: 48Y
• Rotation: Counter Clockwise (Shaft Up)
• Shaft Extension: 1.25 inches
• Wiring: 4-Wire with Plastic Plug
• Speed: 2-Speed
• Phase: 1-Phase
• Manufacturer: International Comfort Products
