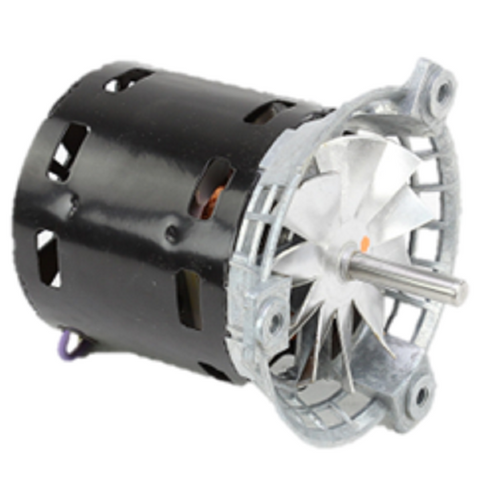

CARRIER 1177657 Draft Inducer Motor 230V 3200 RPM 712112033

Product Description

The CARRIER 1177657 Draft Inducer Motor is an essential component designed for use in HVAC systems. This motor operates at a voltage of two hundred thirty volts and a frequency of sixty hertz, reaching a speed of three thousand two hundred RPM. It works as a single-phase motor, drawing zero point sixty-five amps while delivering one twenty-fifth horsepower. The motor rotates in a clockwise direction from the lead end and is equipped with sealed ball bearings and Class B insulation for enhanced reliability.

• Operates at 230V and 3200 RPM for optimal airflow induction in HVAC applications.
• Features a double-sided flat shaft measuring 5/16 inches in diameter and 1-3/8 inches in length.
• Includes thermal protection and a service factor of 1.0 for safety.

Product Highlights

This motor is thermally protected, making it suitable for continuous operation in HVAC units.

Product Information

Standard Information

• Manufacturer: Fasco
• Type: U21B

Technical Specifications

• Voltage: 230V
• Speed: 3200 RPM
• Application: HVAC systems
• Function: Airflow induction
• Manufacturer Part #: 712112033
• Horsepower: 1/25
• Hertz: 60
• Number of Phases: 1
• Amps: 0.65
• Rotation: Clockwise Lead End
• Bearings: Sealed Ball
• Service Factor: 1.0
• Shaft Type: Double Sided Flat Shaft
• Shaft Diameter: 5/16
• Shaft Length: 1-3/8
• Thermally Protected: true
• Insulation Class: B
