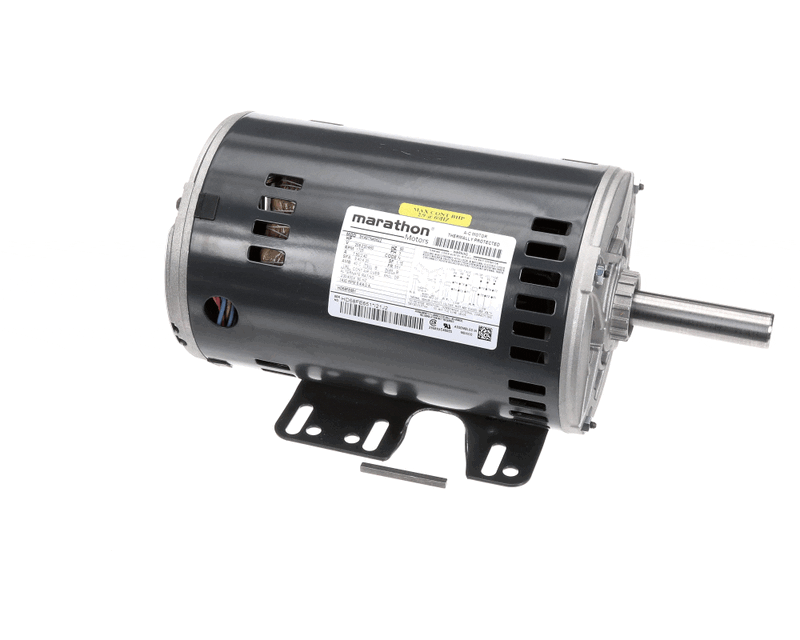

CARRIER 1175721 Blower Motor 2.9 Horsepower (Single Speed) Replacement MPN

Product Description

The CARRIER 1175721 Blower Motor is a reliable three-phase motor suitable for blower applications. It operates at both 208 and 230 or 460 volts and works with a frequency of 50 or 60 Hertz. The motor has a rated horsepower of two and nine-tenths with a single speed and reverse rotation capability.

• Operates on 208-230/460 voltage and 50/60 Hz.
• Features a 7/8 inch diameter shaft with a length of three and one-eighth inches.
• Designed with a 56Y frame and rigid mounting for secure installation.

Product Highlights

This blower motor has a service factor of 1.15 and utilizes ball bearings for optimum performance. Full load amperage is rated at 7.5/3.4, making it efficient for various blower setups.

Product Information

Standard Information

• Manufacturer Part #: 5K49TN4662Z
• Horsepower: 2.9

Technical Specifications

• Voltage: 208-230/460
• Hertz: 50/60
• Number of Phases: 3
• FLA: 7.5/3.4
• Number of Speeds: 1
• Rotation: REV
• Frame: 56Y
• Mounting Type: RIGID
• Service Factor: 1.15
• Shaft Diameter: 7/8
• Bearing Type: BALL
• Shaft Length: 3-1/8
