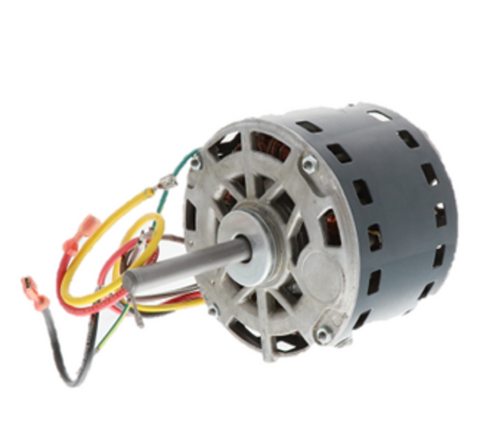

CARRIER 1173840 Blower Motor 1/3 HP

Product Description

The CARRIER 1173840 is a blower motor made for HVAC and ventilation systems. It runs on a 208-230 Vac single-phase power supply and has a power output of 1/3 HP. This motor features dual speed settings and reaches a maximum speed of one thousand sixty RPM while drawing two amps of current. Built with a forty-eight NEMA frame size, it uses sleeve bearings to support the rotor. The design includes a band mount for easy installation and operates in a clockwise direction. A permanent split capacitor (PSC) is included for efficiency.

• Operates at 208-230 Vac, single phase.
• Two speed settings with a maximum speed of 1060 RPM.
• Constructed with sleeve bearings and band mount.

Product Highlights

This blower motor is ideal for replacement in HVAC systems, ensuring reliable performance and energy efficiency.

Product Information

Standard Information

• Type: Blower Motor
• Power Rating: 1/3 HP

Technical Specifications

• Voltage: 208-230 Vac
• Phase: Single Phase
• Speed: 1060 RPM
• Speed Settings: 2 Speed
• Current Draw: 2 Amps
• Frame Size: 48 NEMA
• Bearing Type: Sleeve Bearing
• Mounting Type: Band Mount
• Rotation: Clockwise (CW)
• Capacitor Type: Permanent Split Capacitor (PSC)
