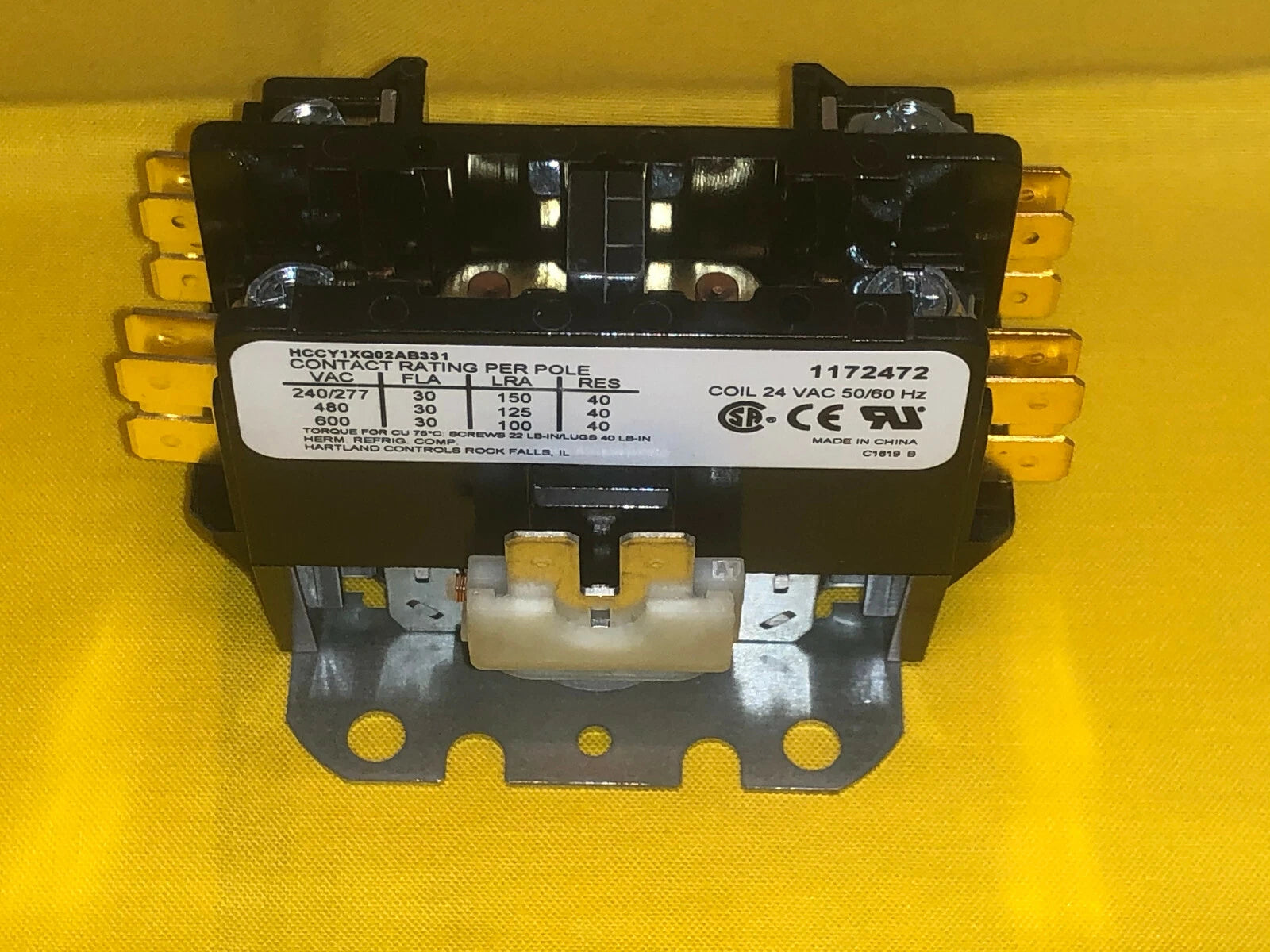

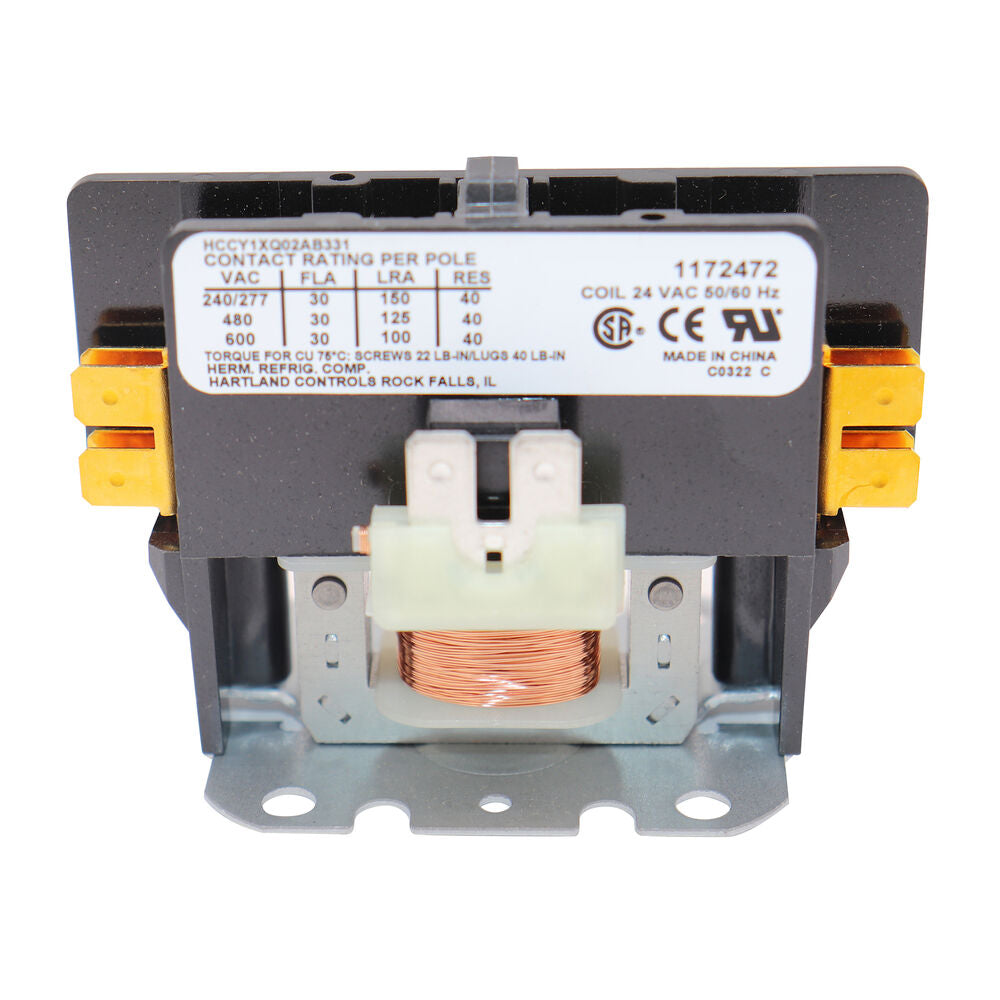

CARRIER 1172472 ICP Contactor 24V 30A 1-Pole

Product Description

The CARRIER ICP Contactor 1172472 is a reliable single-pole contactor designed for effective electrical circuit control. This device is manufactured by Hartland Controls, part of the HCC series. It operates at 24 volts AC and supports a full load amperage of thirty amperes, making it suitable for various applications.

• Single-pole, single-throw design for circuit control.
• Functions at 24V AC with a full load amperage of 30A.
• Equipped with 1/4 quick connect coil terminal connections.

Product Highlights

Ideal for electrical systems where switching control is needed. The contactor has a locked rotor amperage rating of up to one hundred amperes, providing robust performance in demanding conditions.

Product Information

Standard Information

• Manufacturer: Hartland Controls
• Series: HCC

Technical Specifications

• Poles: 1
• Amperage: 30A
• Voltage Rating: 600V
• Coil VAC: 24V
• Resistance: 40 Ohms
• Switch Type: Normally Open
• Coil Terminal Connections: 1/4 Quick Connect
• Frequency: 50/60 Hz
• Type: Definite Purpose
