CARRIER 1172212 Condenser Fan Motor 1/3 HP 208-230 Vac Replacement MPN

Product Description

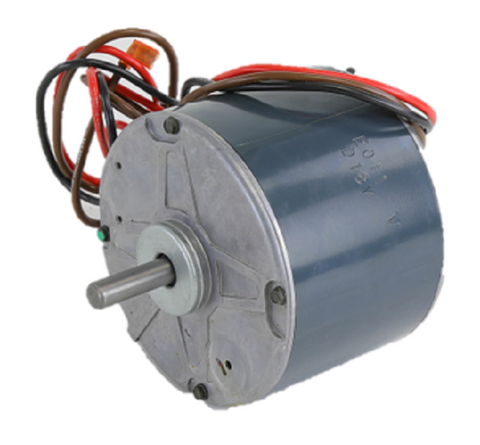

The CARRIER 1172212 is a condenser fan motor specifically designed for HVAC systems. It operates on 208-230 Vac single-phase power, providing a horsepower of 1/3. The motor rotates clockwise at a speed of 1075 RPM, drawing a current of 1.6 Amps. This product features a NEMA frame size of 48 and a sleeve bearing, allowing for efficient operation. It is mounted using a thru bolt configuration and utilizes a permanent split capacitor (PSC) design, ensuring reliable performance in cooling systems.

• Operates at 208-230 Vac for standard power supplies.
• Delivers 1/3 HP for effective condenser fan operation.
• Includes a sleeve bearing for reduced friction.

Product Highlights

The CARRIER 1172212 is suitable for various HVAC applications, ensuring optimal performance and durability.

Product Information

Standard Information

• Type: Condenser Motor
• Domestic / Import: Import

Technical Specifications

• Horsepower: 1/3 HP
• Voltage: 208-230 Vac
• Phase: Single Phase
• Speed: 1075 RPM
• Current: 1.6 Amps
• NEMA Frame Size: 48
• Bearing Type: Sleeve Bearing
• Mounting Type: Thru Bolt Mount
• Rotation: Clockwise (CW)
• Capacitor Type: Permanent Split Capacitor (PSC)
• Manufacturer: International Comfort Products
• Manufacturer #: 1172212
