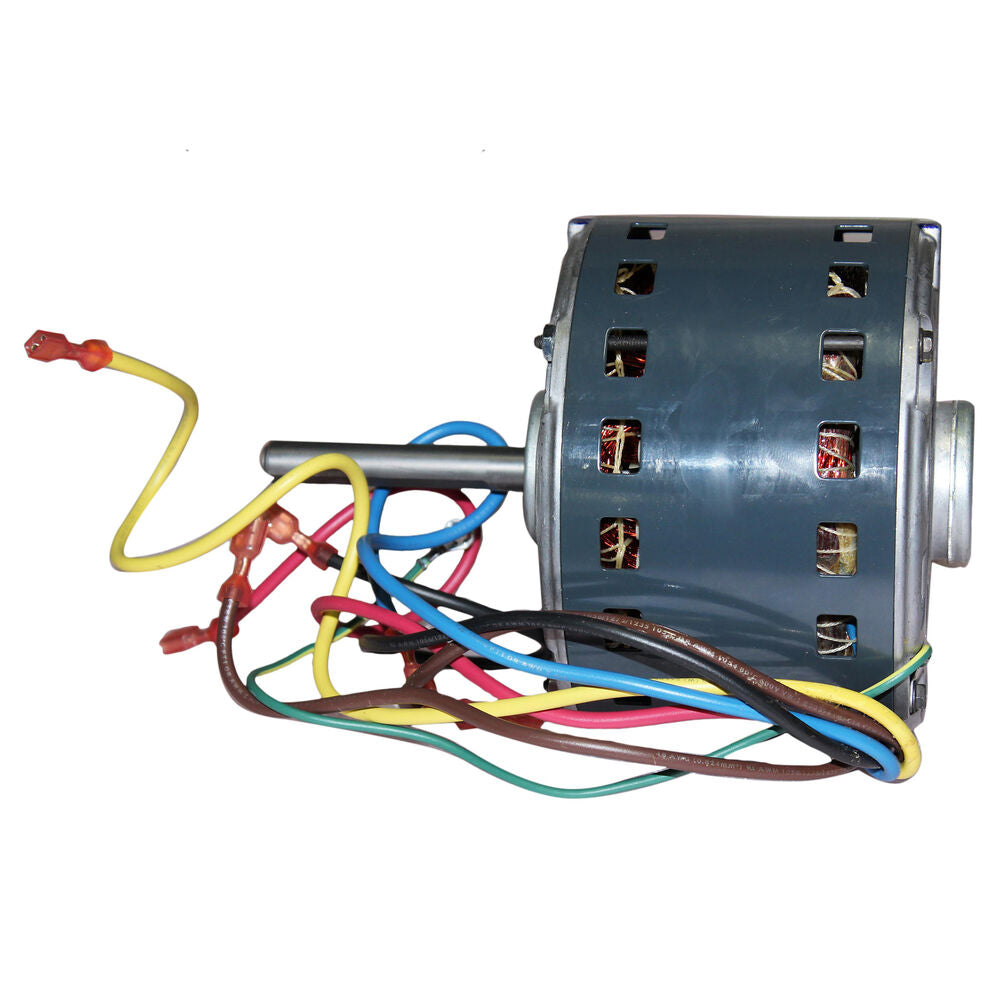

CARRIER 1171766 ICP 1/4 HP Blower Motor

Product Description

The CARRIER ICP 1/4 HP Blower Motor is identified by MPN 1171766. This blower motor is suitable for multiple HVAC applications and is designed for reliable performance. It works at 230 volts with a frequency of sixty hertz and has a full load amp rating of 1.8. This motor supports three different speed settings for flexible operation. Built with a NEMA 48 frame and featuring a half-inch shaft, this motor rotates in a counter-clockwise direction and has a service factor of one. It uses a sleeve bearing and is designed for band mounting.

• Operates at 230V with a frequency of 60 Hz
• Three-speed functionality for adjustable performance
• Designed for secure band mounting

Product Highlights

This blower motor allows easy integration into HVAC systems that require specific airflow adjustments.

Product Information

Standard Information

• Brand: CARRIER
• Item Number: 1171766

Technical Specifications

• Horsepower: 1/4
• Voltage: 230
• FLA: 1.8
• Phase: 1-Phase
• Frequency: 60
• Speed: 3 Speed
• Frame: NEMA 48 Frame
• Shaft: 1/2 inch Shaft
• Rotation: Counter-Clockwise
• Service Factor: 1
• Bearing: Sleeve Bearing
• Mount: Band Mount
• Length: 12.00 inches
• Width: 6.00 inches
• Height: 7.00 inches
• Shipping Weight: 8.50 lbs
