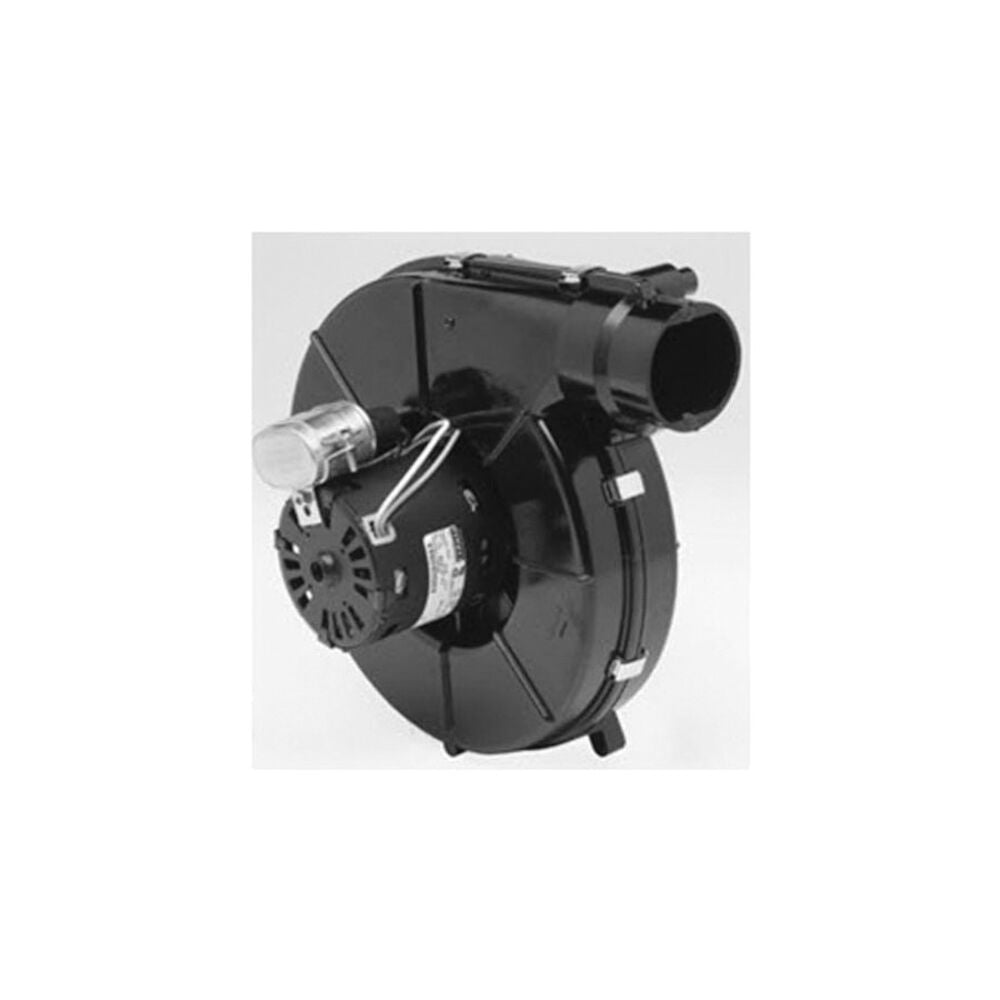

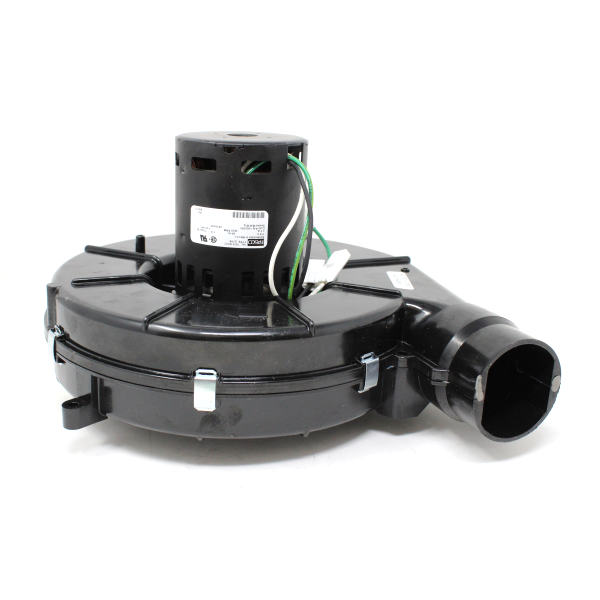

CARRIER 1164280 Draft Inducer Motor Assembly

Product Description

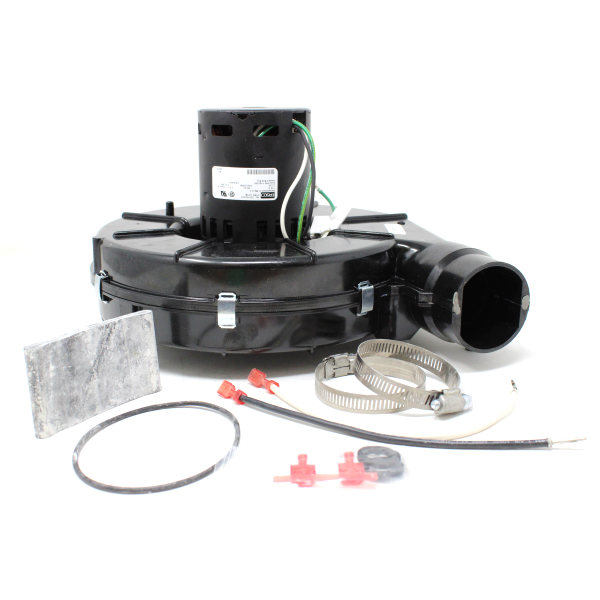

The CARRIER 1164280 Draft Inducer Motor Assembly is compatible with several gas furnace models including 9MPV050F12C1, 9MPV075F12C1, 9MPV100J20C1, and 9MPV125L20C1. This assembly incorporates a Fasco U21B motor, which operates at 115 volts and 60 Hz with an amperage of 2.3. It delivers a horsepower of 1/25 and runs at a speed of 3400 RPM. The motor is designed with thermal protection, Class B insulation, and sealed ball bearings for reliable operation. The inducer housing is made from durable plastic and it includes necessary components like rubber coupling, hose clamps, rubber O-ring, foam washers, and plastic pins.

• Compatible with specific gas furnace models.
• Features thermal protection and sealed bearings.
• Operates at 115 volts with a speed of 3400 RPM.

Product Highlights

Product Information

Standard Information

• Manufacturer: Fasco
• Model Number: 702110702

Technical Specifications

• Fasco Motor Type: U21B
• Horsepower: 1/25
• Voltage: 115
• Hertz: 60
• Amperage: 2.3
• RPM: 3400
• Speeds: 1
• Thermally Protected: true
• Insulation Class: B
• Bearings: Sealed Ball
• Rotation: Clockwise Lead End
• Inducer Housing Material: Plastic
• For Use With: 9MPV050F12C1, 9MPV075F12C1, 9MPV100J20C1, 9MPV125L20C1 Gas Furnace
• Domestic / Import: Domestic
• Manufacturer Number: 1164280
