CARRIER 11002015009825 Fan Motor

Product Description

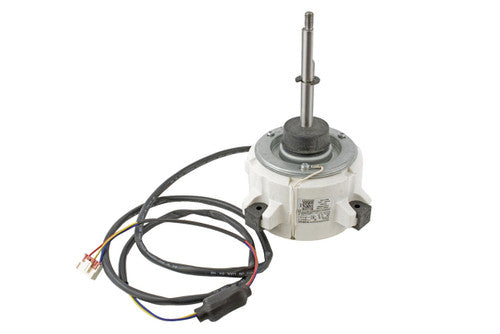

The CARRIER 11002015009825 is a fan motor designed for various heating and cooling systems. This motor is a single-speed PSC motor that runs on 310 VDC. It spins at eight hundred fifty RPM with a clockwise rotation when viewed from the lead end. This motor features a single side flat shaft, suitable for diverse applications that require reliable airflow.

• Operates at 310 VDC.
• Features a single side flat shaft with a diameter of one-half inch and a length of three and a half inches.
• Clockwise rotation when viewed from the lead end.

Product Highlights

This fan motor provides efficient operation for HVAC systems.

Product Information

Standard Information

• Brand: Factory Authorized Parts
• MPN: 11002015009825

Technical Specifications

• Motor Type: PSC (Permanent Split Capacitor)
• Voltage: 310 VDC
• Amperage: 0.39
• Power: 85 Watts
• Phases: 8
• RPM: 850
• Rotation: Clockwise (CW)
• Shaft Type: Single Side Flat Shaft
• Shaft Diameter: 0.5 inches
• Shaft Length: 3.5 inches
• Insulation Class: E
• Number of Speeds: 1 (Single)
• Duty: Continuous Running Duty (S1)
• Cycle/Hertz: 50/60 Hz
• Country of Origin: CHN
• UPC: 822529929101
• GTIN: 00822529929101
• Weight: 6 pounds
• Dimensions: 10 inches length, 6.62 inches width, 6.62 inches height
