Carrier 11002015000092 Motor, DC, Brushless 40W 5/16in Shaft Dia 2-1/2in Shaft Length Replaces 202400300540

Product Description

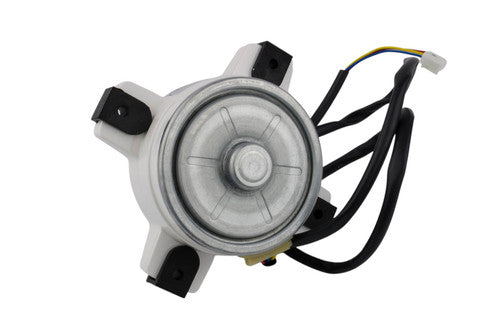

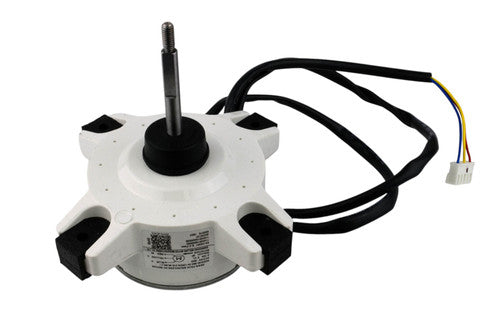

The CARRIER 11002015000092 is a genuine OEM replacement DC brushless motor. Manufactured by Guangdong Welling Motor Manufacturing Co., this motor operates at 310 DC Voltage with 0.19 Amps, delivering 40 Watts of power at 800 RPM. It features an E insulation class, an 8-pole design, a 5/16-inch shaft diameter, and a 2-1/2-inch shaft length. This component is designed for central air conditioner applications.

• Genuine OEM replacement part for reliable performance in HVAC systems.
• Resolves issues with noisy or non-functional central air conditioner fan motors.
• Addresses problems like condenser fan motor not running or circuit breaker tripping.

Product Highlights

This 40W DC brushless motor is a genuine Carrier replacement part, ensuring proper function for central air conditioning units.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: 11002015000092
• Country of Origin: China

Technical Specifications

• MPN: 11002015000092
• Manufacturer: Guangdong Welling Motor Manufacturing Co.
• Manufacturer Part Number: WZDK40-38G-W-1
• Motor Type: DC Brushless
• Voltage: 310 DC
• Current: 0.19 Amps
• Wattage: 40W
• RPM: 800
• Number of Poles: 8
• Insulation Class: E
• Shaft Diameter: 5/16 inches
• Shaft Length: 2-1/2 inches
• Replaces Part Number: 202400300540
• Alternative Part Numbers: WZDK40-38G-W-1, RDN-310-40-8A-1, ZKFN-40-8-5, E0109301, 11002015A00056, 20201126, 000041, 00822529718972, A/4
