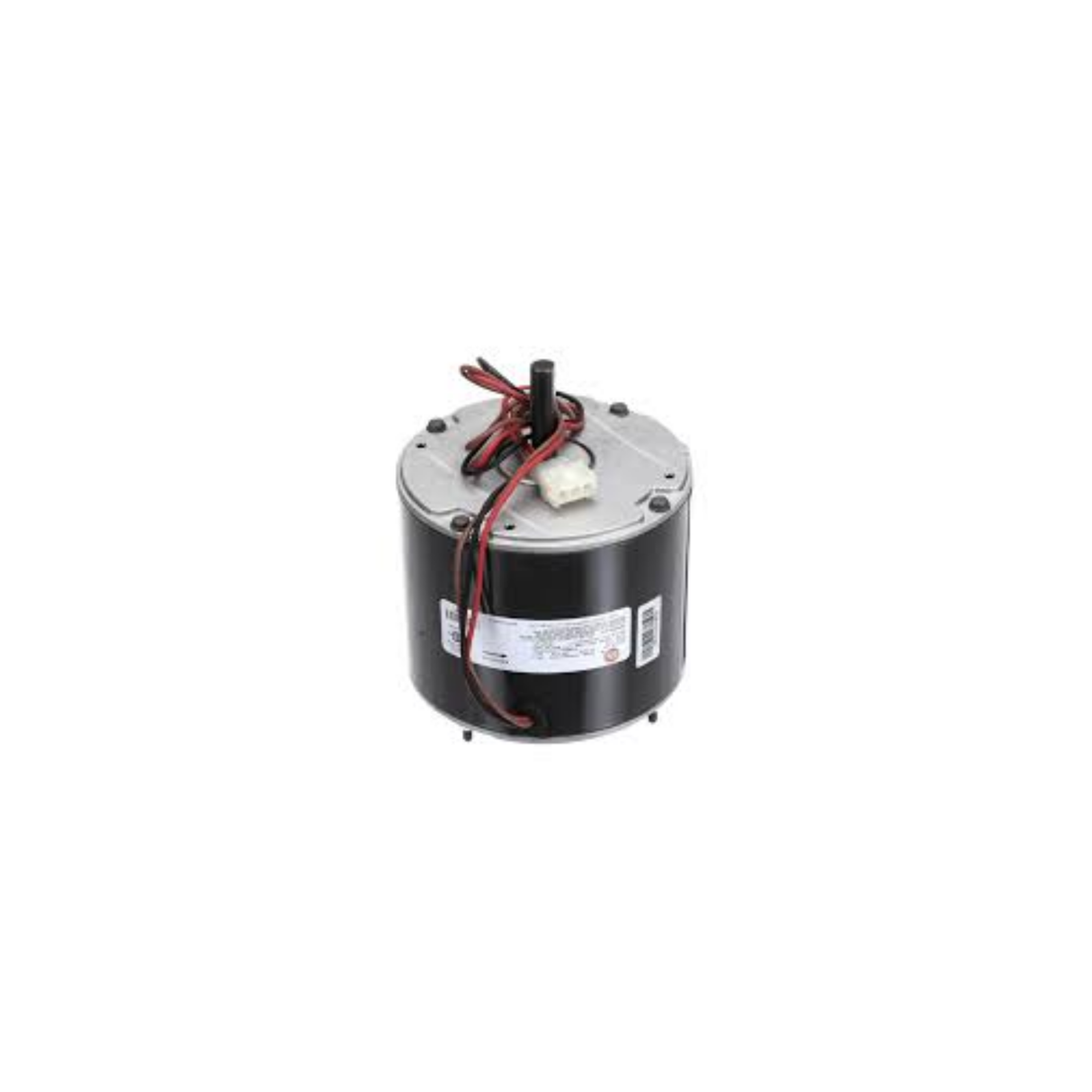

CARRIER 1098088 Condenser Fan Motor 1/3 HP 380/460V

Product Description

The CARRIER 1098088 Condenser Fan Motor is a reliable single-phase motor specifically built for condenser fan applications. It works with voltages of 380/460 and supports both 50 and 60 Hz frequencies, which makes it versatile for various setups. This motor provides 1/3 horsepower at an operational speed of 1100 RPM and features clockwise (CW) lead end rotation, suitable for many HVAC systems.

• Operates on 380/460 volts at 50/60 Hz
• Generates 1/3 horsepower at 1100 RPM
• Includes thermal protection and Class B insulation

Product Highlights

This condenser fan motor is designed for durable performance. It is thermally protected and features air over continuous duty, ensuring reliable operation.

Product Information

Standard Information

• Manufacturer: International Comfort Products
• Product Type: Condenser Motor

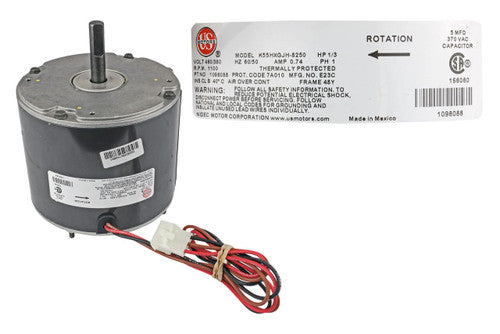

Technical Specifications

• MPN: 1098088
• Horsepower: 1/3
• Voltage: 380/460
• Hertz: 50/60
• Number of Phases: 1
• Amps: 0.74
• RPM: 1100
• Rotation: CW Lead End
• Capacitor Needed: 5/370
• Frame: 48Y
• Mounting Type: Band/Thrubolt
• Shaft Diameter: 1/2
• Shaft Length: 2
• Bearing Type: Sleeve
• Enclosed: Yes
• Thermally Protected: Yes
• Insulation Class: B
• Air Over Continuous: Yes
