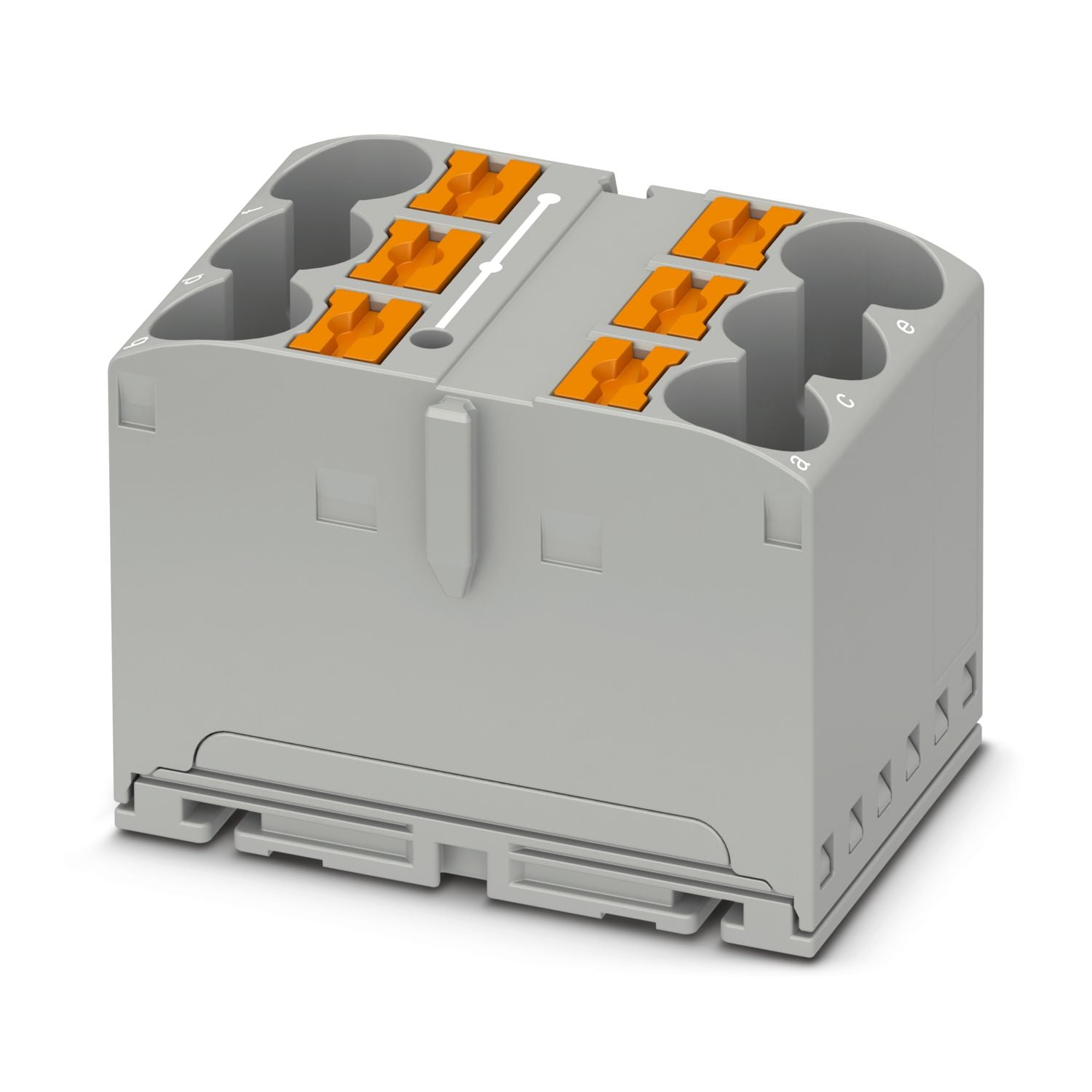

CARRIER 1082492 Phoenix Contact PTFIX 6X10/S-G GY Distribution Block

Product Description

The CARRIER 1082492 is a distribution block designed by Phoenix Contact. This component facilitates electrical connections and is made with durable materials. It supports push-in connection technology suitable for various conductor sizes.

• Connects conductors from 0.5 mm² to 16 mm²
• Mounts with DIN rail, adhesive, or direct methods
• Features a V0 flammability rating

Product Highlights

The distribution block is ideal for organizing electrical connections in a variety of applications, ensuring clear wiring and easy maintenance.

Product Information

Standard Information

• Brand: CARRIER
• MPN: 1082492

Technical Specifications

• Number of rows: 1
• Number of connections: 6
• Potentials: 1
• Nominal cross section: 10 mm²
• Color: gray
• Insulating material: PA
• Flammability rating: V0 (UL 94)
• Mounting type: adhesive
• Rated surge voltage: 6 kV
• Degree of pollution: 3
• Overvoltage category: III
• Maximum load current: 76 A (with 16 mm² conductor)
• Nominal current: 57 A
• Nominal voltage: 450 V
• Operating temperature: -35 °C to 105 °C
• Dimensions: 37 mm width, 24.5 mm length, 25.1 mm height
• Connection method: Push-in connection
