Product Description

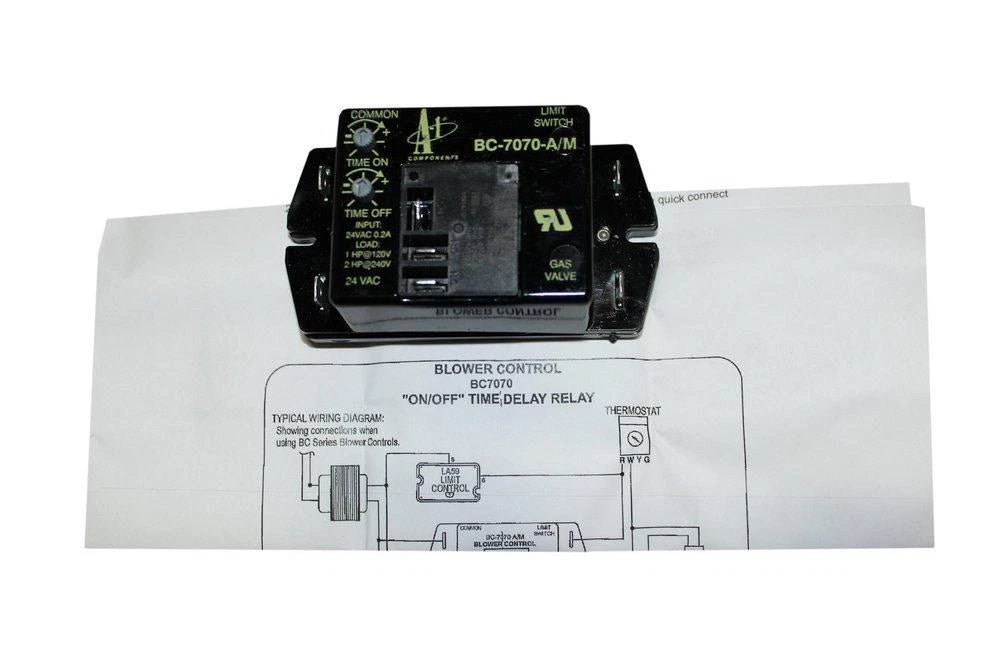

The CARRIER International Comfort Products 1065750 is an HVAC fan control timer specifically designed for 24V systems. This unit operates with an input voltage range of eighteen to thirty VAC at fifty or sixty Hertz, supporting a maximum input of one hundred twenty-five milliamps. It provides a powerful output of one horsepower at one hundred twenty VAC or two horsepower at two hundred forty VAC. The fan control timer features adjustable on and off time delays, ranging from zero to four minutes, with a tolerance of plus or minus twenty percent. The connections utilize one-quarter male quick connects, making installation straightforward.
Designed to perform in extreme environmental conditions, this unit operates in temperatures from negative forty Fahrenheit to one hundred seventy-five Fahrenheit, accommodating up to ninety-five percent non-condensing humidity.
- Operates with an input voltage of 18-30 VAC at 50/60 Hz.
- Adjustable on/off time delays from 0 to 4 minutes.
- Functions in environmental conditions from -40F to 175F with up to 95% non-condensing humidity.
Product Highlights
The CARRIER 1065750 is ideal for efficiently controlling fan operation within specified time parameters.
Product Information
Standard Information
-
Brand: CARRIER
-
MPN: 1065750
Technical Specifications
-
Input Voltage: 18-30 VAC
-
Input Hertz: 50/60
-
Input Max Milliamps: 125
-
Output: 1 HP @ 120 VAC
-
Output: 2 HP @ 240 VAC
-
Time Delay Adjustable On/Off: 0-4 Minutes
-
Time Delay Tolerance: +/- 20%
-
Connections: 1/4 Male Quick Connect
-
Temperature/Humidity: -40F to 175F @ 95% Non-Condensing
