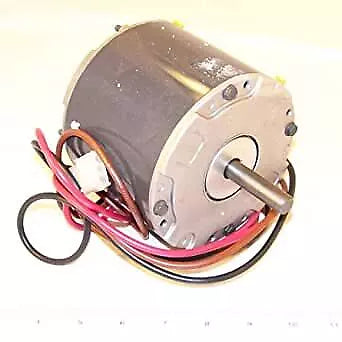

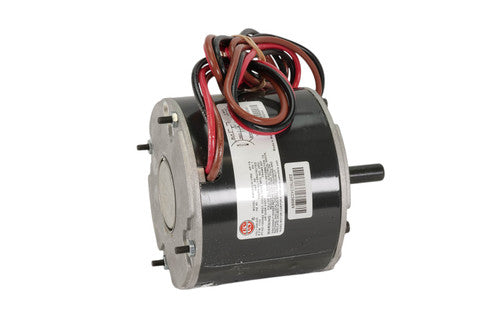

CARRIER 1052662 Condenser Fan Motor 1/6 HP 208/230 VAC

Product Description

The CARRIER Condenser Fan Motor with MPN 1052662 is designed for use in air conditioning systems, operating on 208/230 VAC and 60 Hz. It provides 1/6 horsepower, suitable for various condenser fan applications. The motor needs a 5 MFD capacitor at 370V for optimal performance. This unit has a single-phase design and operates at a speed of 1100 RPM. The motor's frame is classified as 42Y and features thermal protection with Class A insulation.

• Operates at 208/230 VAC, compatible with standard voltage systems.
• Delivers 1/6 HP for efficient condenser fan use.
• Features a single-side flat shaft for secure attachment of fan blades.

Product Highlights

Ideal for replacing worn or damaged fan motors in HVAC systems, this motor ensures reliable cooling performance.

Product Information

Standard Information

• Brand: CARRIER
• UPC: Does not apply

Technical Specifications

• MPN: 1052662
• Horsepower: 1/6 hp
• Voltage: 208/230 VAC
• Hertz: 60
• Amperage: 0.99
• Phase: Single
• RPM: 1100
• Frame: 42Y
• Thermally Protected: True
• Insulation Class: A
• Motor Cooling/Duty: Air Over Continuous
• Capacitor Required: 5 MFD @ 370V
• Rotation: Clockwise Lead End
• Shaft Type: Single Side Flat Shaft
• Shaft Diameter: 1/2 inches
• Shaft Length: 1 7/8 inches
