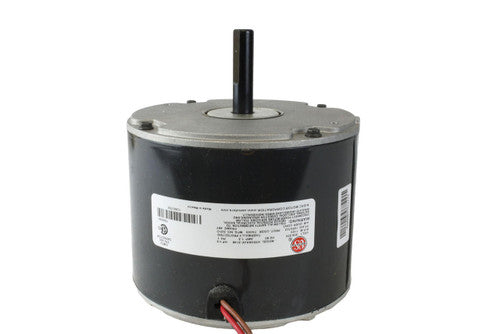

CARRIER 1050703 Condenser Fan Motor 1/3 HP

Product Description

The CARRIER 1050703 Condenser Fan Motor is designed for HVAC systems. This single-phase motor operates on two hundred thirty volts and sixty hertz. It provides one-third horsepower and runs at eleven hundred twenty RPM with clockwise rotation. The motor requires a five microfarad and three hundred seventy voltage capacitor for optimal performance.

• Motor operates at two hundred thirty volts and sixty hertz
• Delivers one-third horsepower with eleven hundred twenty RPM
• Features a half-inch diameter shaft

Product Highlights

This condenser fan motor is ideal for cooling applications in HVAC systems. It is built for reliability and efficiency in various conditions.

Product Information

Standard Information

• Brand: CARRIER
• MPN: 1050703

Technical Specifications

• Manufacturer: US Motors
• Horsepower: 1/3
• Voltage: 230
• Hertz: 60
• Phases: 1
• Amps: 1.20
• RPM: 1120
• Speeds: 1
• Rotation: CW
• Capacitor Needed: 5/370
• Frame: 48
• Mounting Type: BAND
• Shaft Diameter: 1/2
• Bearing Type: SLEEVE
• Shaft Length: 2
