CARRIER 1014529 Draft Inducer Blower Motor 115V

Product Description

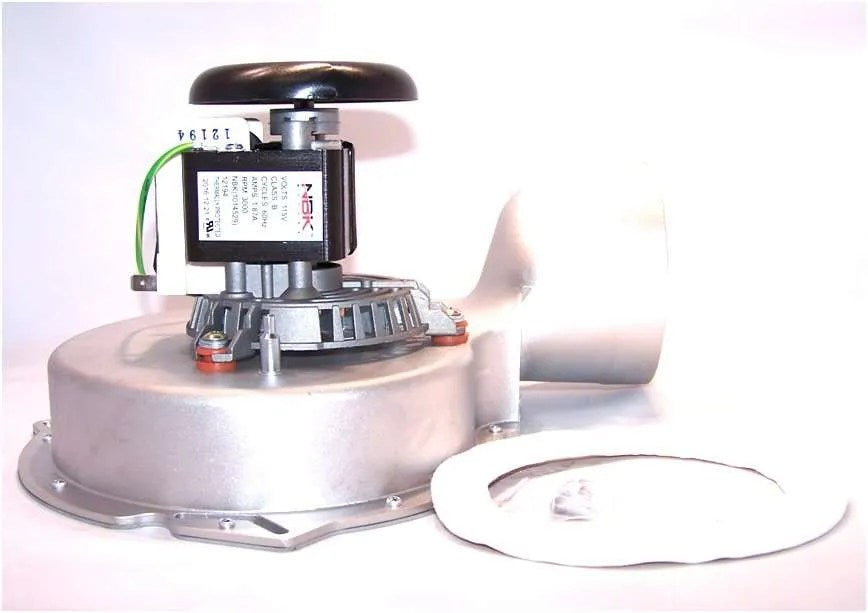

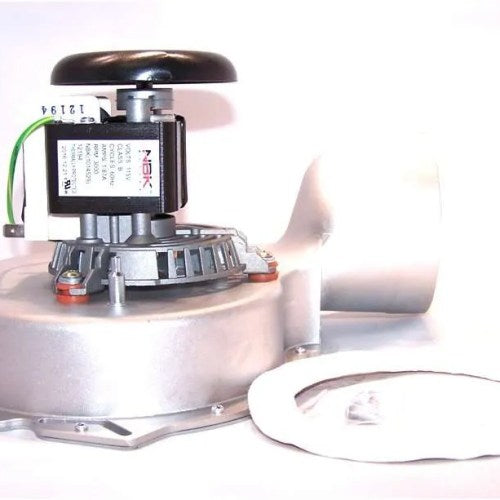

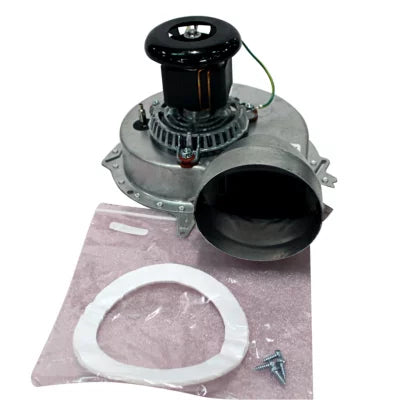

The CARRIER 1014529 is a draft inducer blower motor designed for single-stage use. This unit operates on one hundred and fifteen volts alternating current and works well at fifty or sixty Hertz. The motor employs a shaded pole and sleeve bearing design, ensuring efficient operation. It draws 1.5 amps of current and can achieve a speed of three thousand RPM. The dimensions of this motor measure eight point nine inches in length, ten point four inches in width, and five point six inches in height, with a weight of four point eighty-five pounds. The unit features Class B insulation and is manufactured in Mexico.

• Functions as a blower motor and draft inducer.
• Operates at one hundred fifteen VAC, 1.5 amps, and three thousand RPM.
• Features continuous running duty and Class B insulation.

Product Highlights

This motor is essential for HVAC systems needing reliable draft induction and efficient air flow.

Product Information

Standard Information

• Brand: CARRIER
• Country of Origin: Mexico

Technical Specifications

• Length: eight point nine inches
• Width: ten point four inches
• Height: five point six inches
• Weight: four point eighty-five pounds
• Amps: 1.5
• RPM: three thousand
• Voltage: one hundred fifteen VAC
• Hertz: fifty or sixty
• Insulation Class: B
