Carrier 06TSA155SJ1C screw compressor 5 hp

Product Description

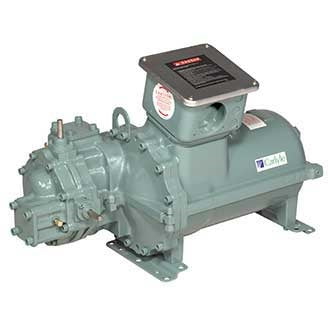

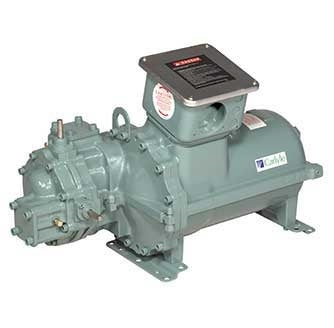

The CARRIER 06TSA155SJ1C is a 460V 3-Phase screw compressor, part of the Carlyle 06T and 05T series. This gear-driven twin screw compressor is engineered for commercial refrigeration, process cooling, environmental chambers, and air conditioning applications. It utilizes R134A refrigerant and features a semi-hermetic housing with consistent physical dimensions and port locations, operating at 50/60 Hz.

• Gear-driven twin screw design for efficient operation.
• Semi-hermetic construction with standardized physical dimensions and port locations.
• Suitable for commercial refrigeration, process cooling, and air conditioning applications.

Product Highlights

Gear-driven twin screw compressor for diverse refrigeration and HVAC applications.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: 06TSA155SJ1C
• Country of Origin: USA

Technical Specifications

• Compressor Type: Screw Compressor
• Voltage: 460V
• Phase: 3-Phase
• Refrigerant: R134A
• Compressor Series: Carlyle 06T and 05T
• Nominal Horsepower Range (Series): 15 to 75
• Compressor Housing: Semi-Hermetic
• Cycle/Hertz: 50/60 Hz
• Discharge Connection Type: Sweat or Braze
• Evaporating Temperature: -40°F to 10°F (-40°C to -12.22°C)
• Locked Rotor Amps (LRA): 170, 545, 174, 530
• Protection: Yes
• Rated Load Amps (RLA): 96, 100
• Return Gas Temperature: 65°F (18.33°C)
• Suction Line Fitting Type: Sweat or Braze
• Suction Line Size (OD): 3 1/8"
