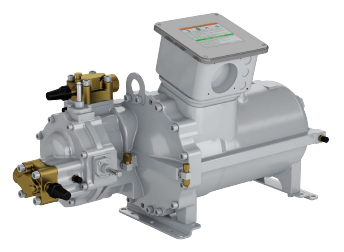

Carrier 06TRF065B2EA-A00 Semi-Hermetic Twin Screw Compressor

Product Description

The Carrier 06TRF065B2EA-A00 is a semi-hermetic, twin-screw compressor designed for low-temperature applications. This compressor features automatic unloaded starting and capacity control, adjusting the compressor capacity in response to changes in suction pressure. It includes a crankcase heater that helps prevent refrigerant accumulation during shutdown and is equipped with a large-capacity oil pump for effective lubrication.

• Designed for low-temperature applications.
• Features automatic capacity control.
• Includes crankcase heater and efficient oil pump.

Product Highlights

This compressor is compatible with R22, R404A, and R507 refrigerants.

Product Information

Standard Information

• Manufacturer: CARRIER
• Application: Low Temp

Technical Specifications

• MPN: 06TRF065B2EA-A00
• Horsepower: 30
• Voltage: 460/3
• Rated Load Amps: 76
• Displacement: 65 CFM at 1750 RPM
• Connection Discharge: 1 5/8 inches
• Connection Suction: 1 5/8 inches
• Length: 37 inches
• Width: 16 inches
• Height: 20 inches
• Weight: 400 lbs
• Oil Type: POE
• 460V LRA: 253
• CYL: SCREW
