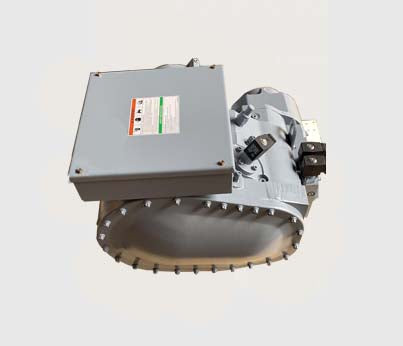

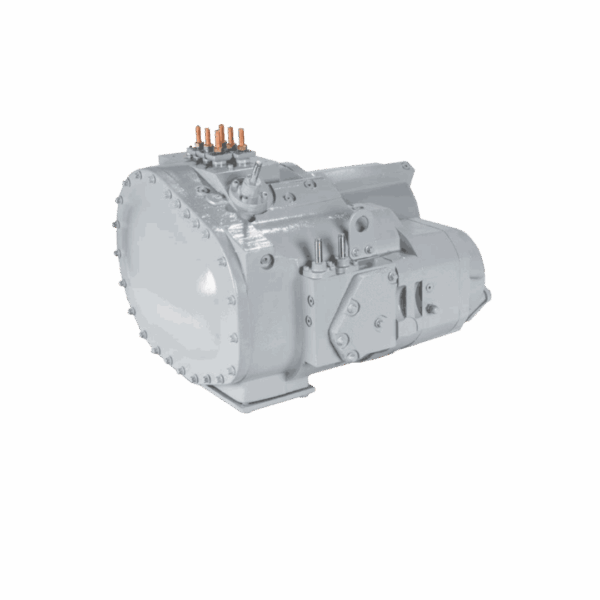

CARRIER 06NA2209S7EA Semi-Hermetic Geared Twin Screw Compressor

Product Description

The CARRIER 06NA2209S7EA is a semi-hermetic geared twin screw compressor. It is suitable for HVAC and refrigeration applications, specifically designed for air-cooled condensing units. This compressor operates efficiently in R134a systems and has a displacement rate of 209 CFM. The unit is compatible with 460V three-phase power at 50/60Hz, designed to work with POE oil, including approved lubricants such as Castrol SW220 with a viscosity grade of ISO220.

• Twin screw compressor designed for HVAC and refrigeration.
• Suitable for air-cooled applications.
• Operates with 460V three-phase power at 50/60Hz.

Product Highlights

The CARRIER 06NA2209S7EA ensures reliable performance in air-cooled systems, making it an ideal choice for HVAC professionals looking for a twin screw compressor.

Product Information

Standard Information

• Manufacturer: CARRIER
• Country of Origin: United States

Technical Specifications

• Model: 06NA2209 Series
• Application: HVAC, Air cooled
• Horsepower: 100
• Displacement: 209 CFM
• Voltage: 460V
• Phase: 3
• Hertz: 60
• Oil Type: POE
• Cylinder Type: Twin Screw
• Operating Weight: 924 lbs
• Exterior Dimensions (D): 28.5 inches
• Exterior Dimensions (W): 27.75 inches
• Exterior Dimensions (H): 30.25 inches
• Safety Standards: California Prop 65
