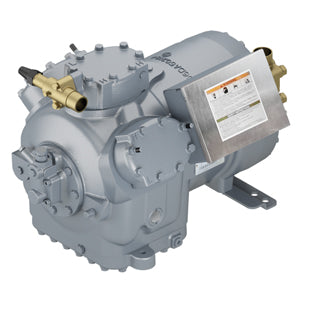

CARRIER 06DS3136AC325ARP Semi-Hermetic Reciprocating Compressor 5 HP

Product Description

The CARRIER 06DS3136AC325ARP is a semi-hermetic reciprocating compressor suitable for air conditioning and medium to high-temperature applications. This five horsepower compressor operates on 208-230 V 3-Phase power, achieving a displacement of 13 cubic feet per minute at one thousand seven hundred fifty RPM.

• Features a high-flow, automatically reversible oil pump for effective lubrication.
• Equipped with an electronic oil-pressure switch to monitor oil levels.
• Includes contoured pistons to enhance compressor efficiency and capacity.

Product Highlights

This compressor is designed for reliable performance across various refrigerants including R22, R404A, R407C, R502, and R507, making it versatile for different HVAC needs.

Product Information

Standard Information

• Vendor Name: Carlyle (Genuine)
• Country of Origin: US

Technical Specifications

• URI Part Number: 06DS3136AC325ARP
• Length: 16 inches
• Width: 24 inches
• Height: 17 inches
• Application: A/C, High Temp, Medium Temp
• Connection Discharge: 5/8 inches
• Connection Suction: 7/8 inches
• Displacement: 13 CFM at 1750 RPM
• Horsepower: 5
• Number of Cylinders: 4
• Oil Charge: 4.5 pints
• Rated Load Amps: 17.3
• Refrigerant: R22, R404A, R407C, R502, R507
• Voltage: 208-240/3
