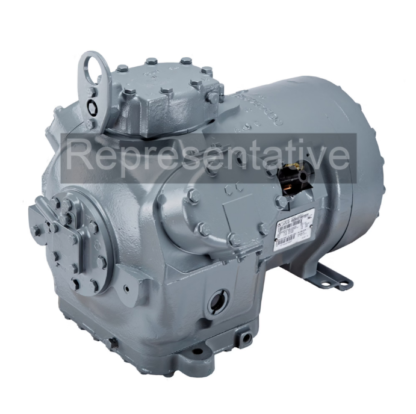

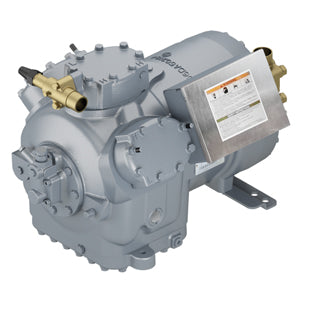

CARRIER 06DR2286DC3250 Reciprocating Semi-Hermetic Refrigerant Duty Compressor

Product Description

The Carrier 06DR2286DC3250 is a semi-hermetic reciprocating compressor suitable for refrigeration tasks. It runs on 208-230 V 3-Phase power at 60 cycles and uses across-the-line starting. This unit features six cylinders and operates with a two horsepower motor, delivering nine cubic feet per minute (CFM). It has a suction valve positioned on the motor end at ninety to one hundred eighty degrees, four bolts, and a built-in thermostat.

• Refrigerant duty compressor for low-temperature settings.
• Operates on 208-230 V 3-Phase power.
• Equipped with six cylinders and delivers nine CFM.

Product Highlights

This compressor is ideal for professionals who require reliable performance in challenging refrigeration applications.

Product Information

Standard Information

• Brand: Carrier
• MPN: 06DR2286DC3250

Technical Specifications

• Voltage: 208-230 V
• Phase: 3-Phase
• Horsepower: 2 Hp
• Cylinders: 6
• CFM: 9
• Weight: 320 lbs
• Dimensions: 26.4 inches x 20.4 inches x 23 inches
