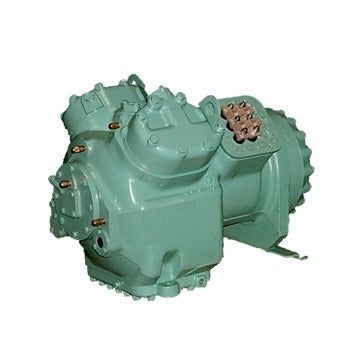

CARRIER 06DM8186AC0650 Semi-Hermetic Reciprocating Compressor 6.5HP

Product Description

The CARRIER 06DM8186AC0650 is a remanufactured semi-hermetic reciprocating compressor suitable for medium temperature refrigeration systems. This unit is powered by a 400/460Vac, three-phase electrical supply operating at 50/60Hz. The compressor offers a maximum displacement of eighteen point three CFM and incorporates an internal thermostat for effective overcurrent protection.

• Service compressor (remanufactured)
• Operates on 400/460Vac three-phase power
• Maximum displacement of eighteen point three CFM

Product Highlights

This compressor supports various refrigerants and is designed for reliability and efficiency in refrigeration applications.

Product Information

Standard Information

• Manufacturer: CARRIER
• MPN: 06DM8186AC0650

Technical Specifications

• Application: Refrigeration Med Temp
• Horsepower: 6.5HP
• Displacement (CFM): 18
• Cylinders: 4
• Voltage: 400/460V
• Phase: 3
• Frequency: 50/60 Hz
• Refrigerant: R-134a, R-404A, R-407A, R-407C, R-407F, R-448A, R-449A, R-450A, R-452A, R-507, R-22, R-500, R-502
• Oil Type: Polyol-Ester (POE), Mineral, Alkylbenzene
• Oil Volume: 5.5 pints
• 460V RLA: 14.1
• Overcurrent Protection: Internal Thermostat
• Safety Standards: California Prop 65
