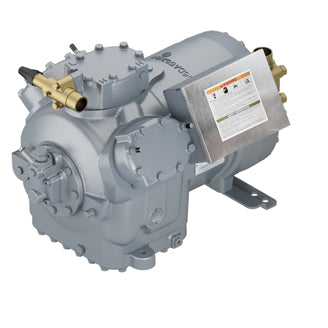

Carrier 06DM3376DC3250 Semi-Hermetic Compressor 10 HP 37 CFM

Product Description

The Carrier 06DM3376DC3250 is a semi-hermetic compressor used in refrigeration systems. This model consists of six cylinders and provides a capacity of thirty-seven cubic feet per minute. The compressor operates at ten horsepower, making it suitable for medium-duty applications. It includes a high-flow, automatically reversible oil pump for lubrication, ensuring reliability during operation. The design incorporates a crankcase venting system to balance pressure at startup, which helps return oil to the sump efficiently.

• Semi-hermetic compressor housing
• Equipped with a suction valve at the motor end
• Utilizes across-the-line starting

Product Highlights

This compressor is built to meet Carrier Corporation specifications, offering dependable performance in various refrigeration applications.

Product Information

Standard Information

• Brand: Carrier
• Country of Origin: MEX

Technical Specifications

• Compressor Type: Semi-hermetic
• CFM: 37
• Cycle/Hertz: 60 Hz
• Motor HP: 10
• Phase: Three
• Voltage: 208-230 VAC
• Refrigerant: R-22
• Suction Line Size (OD): 1 5/8 inches
• Discharge Connection Size (OD): 1 1/8 inches
• Overload Type: Thermal
• Locked Rotor Amps (LRA): 228
• Rated Load Amps (RLA): 39.7
• Return Gas Temperature: 65°F
• Mounting Dimensions: 8 22/25 inches - 11 19/50 inches x 12 39/50 inches
• Overall Length: 24 inches
• Height: 23.3 inches
• Length: 26.3 inches
• Width: 20.4 inches
• Discharge Connection Type: Sweat or Braze
• Suction Line Fitting Type: Sweat or Braze
• Protection: Yes
• Approvals: CSA Listed; UL Listed
