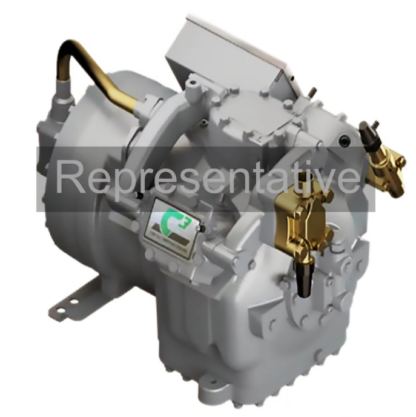

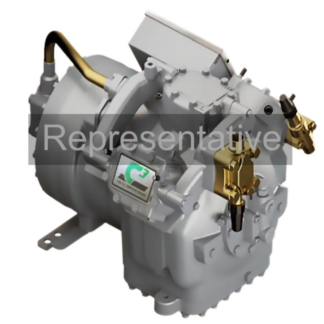

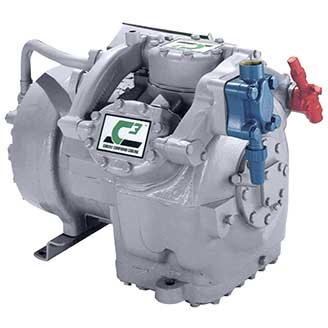

CARRIER 06CY899E103 Oilless Compressor

Product Description

The CARRIER 06CY899E103 is an oilless compressor built for low-temperature refrigeration applications. It features a design that combines high and low compression stages in one unit. This compressor is compatible with HFC refrigerants and POE oil, ensuring effective performance in various settings.

• Optimizes system operation
• Two compression stages in a single body
• Ships oil-less for convenience

Product Highlights

Ideal for refrigeration systems requiring low temperatures. The compressor enhances efficiency by utilizing liquid subcooling to reduce temperature fluctuations, making it suitable for R-22, R-404A, and R-507 refrigerants.

Product Information

Standard Information

• Manufacturer Part Number: 06CY899E103
• Country of Origin: US

Technical Specifications

• Application: Low Temp
• Connection Discharge: 1 3/8 inches
• Connection Suction: 1 5/8 inches
• Displacement: 99 CFM at 1750 RPM
• Horsepower: 30
• Number of Cylinders: 6
• Oil Charge: 19.0 pints
• Rated Load Amps: 113/58
• Voltage: 208-240/3, 460/3
• Dimensions: 21.00 x 31.00 x 23.00 inches
• Weight: 580.00 lbs
