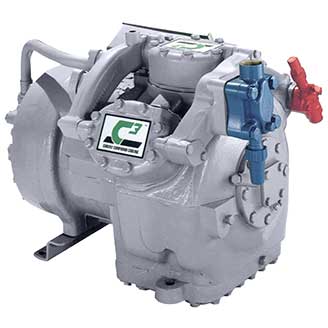

CARRIER 06CY228G103 Compressor 7.5 HP 460V

Product Description

The CARRIER 06CY228G103 is a specialized compressor designed for low-temperature refrigeration tasks. This model operates with a power of seven point five horsepower and functions on a voltage of four hundred sixty volts.

• Two-stage compression within a single unit.
• Compatible with R-22, R-404A, and R-507 refrigerants.
• Engineered for high energy efficiency across varying head pressures.

Product Highlights

The CARRIER 06CY228G103 compressor is suitable for maximizing cooling applications in refrigeration systems.

Product Information

Standard Information

• Manufacturer Part Number: 06CY228G103
• Application: Low Temp

Technical Specifications

• Refrigerant: R22, R404A, R507
• Horsepower: 7.5
• Voltage: 460/3
• Number of Cylinders: 6
• Connection Discharge (Inches): 7/8
• Connection Suction (Inches): 1 5/8
• Displacement (CFM at 1750 RPM): 28
• Oil Charge (Pint): 9.5
• Rated Load Amps: 14.9
• Length (Inches): 26
• Width (Inches): 18
• Height (Inches): 17
• Country of Origin: US
