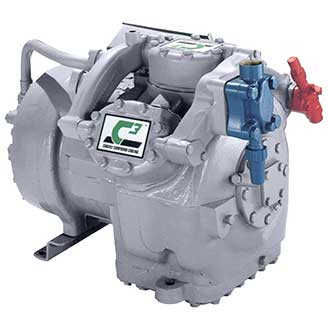

CARRIER 06CY228D103 Compound Cooling Compressor 7.5 HP

Product Description

The CARRIER 06CY228D103 is a compound cooling compressor suitable for low-temperature refrigeration. This unit operates at seven and a half horsepower and features a two-stage compression design. It minimizes temperature fluctuations with liquid subcooling.

• Two-stage booster performance in a single body.
• Efficient design for low-temperature refrigeration systems.
• Compatible with various refrigerants including R-22, R-404A, R-407A, and R-507.

Product Highlights

This compressor is ideal for low-temperature applications and is designed for energy efficiency.

Product Information

Standard Information

• Manufacturer Part Number: 06CY228D103
• Country of Origin: US

Technical Specifications

• Application: Low Temp
• Horsepower: 7.5
• Voltage: 208-240/3
• Number of Cylinders: 6
• Refrigerants Compatible: R22, R404A, R507
• Connection Discharge: 7/8 inches
• Connection Suction: 1 5/8 inches
• Displacement: 28 CFM at 1750 RPM
• Oil Charge: 9.5 pints
• Rated Load Amps: 26.7
• Dimensions: 26 inches x 18 inches x 17 inches
• Weight: 340.00 lbs
