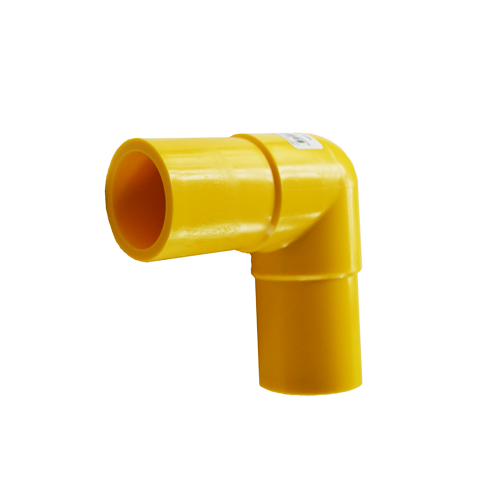

Carrhill B92 Butt Fusion Mdpe 90 Elbow 2 Inches

Product Description

The CARRHILL B92 is a 2-inch butt fusion 90-degree elbow fabricated from medium-density polyethylene (MDPE) and color-coded yellow to indicate natural gas service. This fitting is designed for use in underground and above-ground gas distribution piping systems where a directional change of 90 degrees is required. The yellow MDPE construction provides the flexibility, impact resistance, and corrosion immunity expected from modern thermoplastic gas piping. Licensed gas piping contractors and utility installers are the typical end users for this type of fitting.

This elbow is suited for residential and light commercial natural gas distribution applications, particularly where MDPE pipe systems are specified. Butt fusion fittings are the industry-standard joining method for polyethylene gas piping and are commonly used in new construction, service line replacement, and main extension projects. The fitting is installed using a butt fusion machine that heats both the fitting face and the pipe end before joining under controlled pressure.

Key Features

• 2-inch nominal size suitable for standard MDPE gas distribution piping
• 90-degree elbow geometry for directional changes in gas piping runs
• Yellow color coding identifies the fitting for natural gas service per industry convention
• MDPE construction resists corrosion, making it appropriate for direct burial applications
• Butt fusion connection type eliminates mechanical joints in the buried piping run

Compatibility

Designed as an OEM-style replacement and new-installation fitting for 2-inch MDPE yellow gas distribution piping systems.

Installation Notes

Installation must be performed by a qualified and licensed gas piping contractor familiar with butt fusion joining procedures. Shut off and purge the gas supply before any work on an existing line. Butt fusion requires properly calibrated fusion equipment set to the pipe and fitting manufacturer specifications for heat and pressure. All gas piping installations must comply with applicable local codes and NFPA 54 or equivalent authority having jurisdiction requirements.

Technical Specifications

• Size: 2 inches
• Fitting Type: 90-Degree Elbow
• Connection Type: Butt Fusion
• Material: Medium-Density Polyethylene (MDPE)
• Color: Yellow (Natural Gas Service)
• Order Increment: 1

Standard Information

• Brand: CARRHILL
• Manufacturer Part Number: B92
