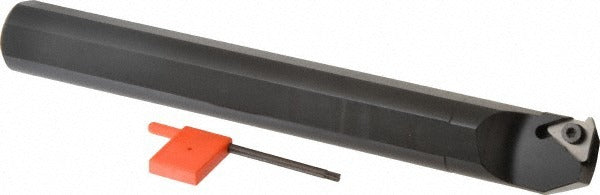

Carmex SIR1250S22 Internal Threading Toolholder 1.25in

Product Description

The CARMEX SIR1250S22 is an indexable internal threading toolholder designed for right-hand cutting operations on CNC lathes and turning centers. Built to the SIR toolholder style, it accepts 22IR series inserts secured by a screw-clamp holding method for positive insert location under load. The shank measures 1.25 x 1.25 inches square with an overall length of 10 inches, and the minimum bore diameter is 1.5 inches, making it suitable for threading medium to large internal bores. This toolholder does not include coolant-through capability. It is intended for use by machinists and toolroom professionals in production and job-shop turning environments.

The SIR1250S22 is applied in internal threading operations where a rigid, square-shank boring bar style holder is required. It fits standard tool block or turret positions that accept 1.25-inch square shank tooling. The 0.85-inch center-to-cutting-edge and back-of-bar-to-cutting-edge dimensions are suited for threading operations in bores starting at 1.5 inches. This toolholder is a single-use style and is not configured as a multi-use tool. Typical applications include thread-chasing and thread-generating passes on ferrous and non-ferrous workpieces in a lathe or turning center setup.

Key Features

• Right-hand cutting orientation in SIR toolholder style
• Accepts 22IR indexable threading inserts with 1/2-inch inscribed circle
• Screw clamp insert holding method for secure, repeatable insert seating
• 1.25 x 1.25 inch square shank with 10-inch overall length
• Minimum bore diameter of 1.5 inches for medium to large internal threading
• No coolant-through configuration - suited for dry or flood-coolant-at-entry setups

Compatibility

Designed for use with 22IR series indexable threading inserts. Fits tool blocks and turret stations accepting a 1.25-inch square shank. Confirm insert seat geometry and thread profile with the selected 22IR insert grade and style before use.

Installation Notes
