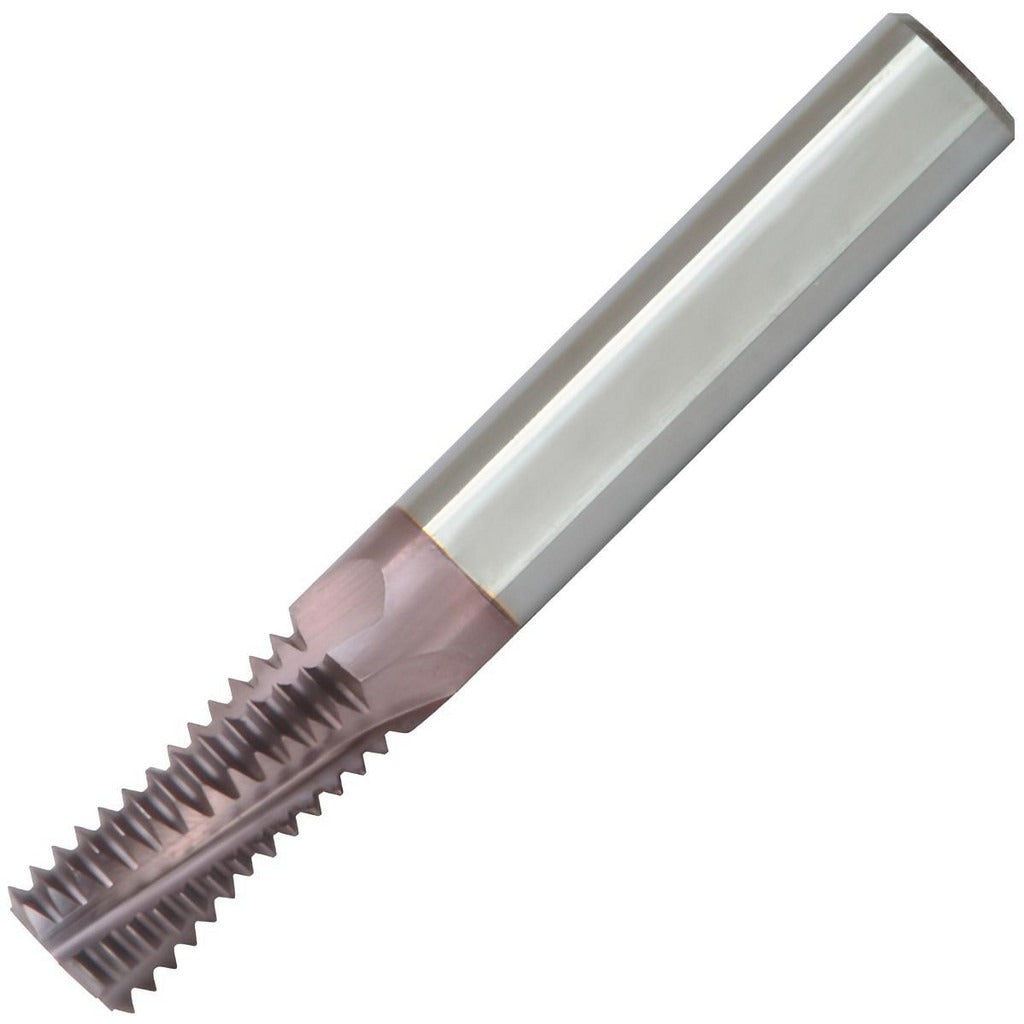

Carmex MT0250C0427NPTF Thread Mill 1/8-27 Nptf 3 Flute Carbide

Product Description

The CARMEX MT0250C0427NPTF is a solid carbide helical flute thread mill designed for cutting 1/8-27 NPTF threads in both internal and external applications. Built to material grade MT7 and coated with TiAlN for heat and wear resistance, this tool handles tapered pipe thread profiles where a leak-free, pressure-tight fit is required. It runs a 3-flute, right-hand flute geometry on a 0.25 inch shank, with a 0.39 inch length of cut and a 2.5 inch overall length. Machinists and tool-and-die professionals use this mill on CNC machining centers for precise, single-pass or helical interpolation thread generation without the risk of tap breakage.

This thread mill is suited for NPTF pipe thread applications in industries where tapered threads must seal without sealant, including hydraulic, pneumatic, and fluid-transfer component manufacturing. The 1/8-27 thread size targets small-bore fittings and ports commonly found in instrumentation, manifold blocks, and valve bodies. The 0.125 inch minimum nominal diameter and 0.39 inch length of cut make it appropriate for shallow-bore thread milling in tight workpiece geometries. Compatible with standard CNC machining centers equipped with helical interpolation capability.

Key Features

• Cuts 1/8-27 NPTF tapered pipe threads, both internal and external, in a single tool
• Solid carbide construction at material grade MT7 for rigidity and long tool life in ferrous and non-ferrous materials
• TiAlN coating provides elevated heat resistance and extended wear life in dry or semi-dry cutting conditions
• 3-flute, right-hand helical geometry supports smooth chip evacuation during helical interpolation
• No coolant-through design - suitable for external coolant or dry cutting setups
• 0.25 inch shank diameter fits standard ER and shrink-fit toolholders common to CNC machining centers

Compatibility

Designed for use in CNC machining centers capable of helical interpolation, targeting 1/8-27 NPTF tapered pipe thread applications in solid carbide-appropriate workpiece materials.

Installation Notes

Thread mills of this type are installed and operated by machinists or CNC programmers on vertical or horizontal machining centers. Secure the shank in a properly sized collet or toolholder to the manufacturer-specified runout tolerance before use. Program the tool path using helical interpolation at the correct pitch and lead angle for 1/8-27 NPTF geometry. Always confirm spindle speed and feed rate against the tool manufacturer recommendations for the specific workpiece material before cutting.
