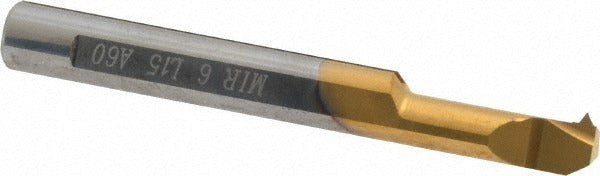

Carmex MIR6L15A60 Single Point Threading Tool Internal

Product Description

The CARMEX MIR6L15A60 is a solid carbide single point threading tool designed for internal thread cutting on CNC lathes and turning centers. It handles a threading range of 16 to 24 TPI (1.00 mm to 1.50 mm pitch) with a minimum threading diameter of 0.24 inches and a cutting depth of 0.59 inches. The tool carries a TiN (Titanium Nitride) coating for improved wear resistance and surface finish. With a 60-degree profile angle and right-hand thread direction, it covers the most common unified and metric thread forms encountered in precision machining work. Licensed machinists and CNC operators use this tool for finish threading in tight-bore applications.

This threading tool is suited for internal threading operations in production and job-shop environments where bore diameter constraints require a compact, high-precision cutting tool. The 6.00 mm shank diameter allows it to reach into small-diameter bores while maintaining rigidity. Coolant-through capability makes it a practical choice for deep threading passes where chip evacuation and heat control are critical. It is appropriate for use in ferrous and non-ferrous materials where a TiN-coated solid carbide tool is specified.

Key Features

• Solid carbide construction for rigidity and wear resistance in precision threading
• TiN coating extends tool life and improves surface finish on threaded features
• 60-degree profile angle covers unified (UN) and standard metric thread forms
• Threading range of 16 to 24 TPI (1.00 mm to 1.50 mm pitch) for versatile application
• Coolant-through design aids chip evacuation and thermal control during deep threading passes
• Right-hand thread direction with 0.037 inches projection from edge for precision fitment in tight bores

Compatibility

Designed for use in CNC lathes and turning centers accepting a 6.00 mm shank diameter boring bar or toolholder for internal single point threading operations.

Installation Notes

Installation and operation of this threading tool should be performed by a qualified machinist or CNC operator. Ensure the machine spindle is fully stopped and the toolholder is de-energized before seating or removing the insert. Verify shank diameter compatibility with the toolholder bore and confirm clamping torque matches the toolholder manufacturer specification. Follow applicable shop safety procedures and machine-specific programming requirements when setting thread depth and feed rate.
