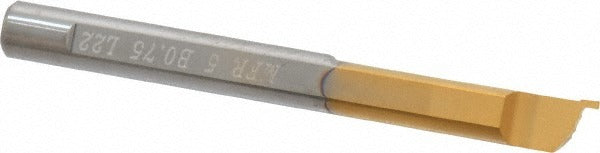

Carmex MFR5B0.75L22 Face Grooving Tool Solid Carbide

Product Description

The CARMEX MFR5B0.75L22 is a solid carbide face grooving tool designed for internal face grooving operations in precision machining applications. The tool features a 5 mm shank diameter and a 0.0300-inch groove width, making it suitable for tight-tolerance grooving work in small-bore applications. At 2.0 inches overall length with a 0.0500-inch projection, it is engineered for controlled material removal in confined bore geometries. Machinists and tooling specialists working with CNC lathes and boring applications will find this tool built for repeatability and dimensional accuracy.

This face grooving tool is suited for use in precision turning and boring operations where face grooves must be cut inside small-diameter bores. The minimum bore diameter of 0.2400 inches and maximum hole depth of 7/8 inch define its primary application envelope. It is typically used in production machining environments where solid carbide tooling is preferred for its rigidity, wear resistance, and performance in harder workpiece materials.

Key Features

• Solid carbide construction for high rigidity and wear resistance in demanding machining environments
• 5 mm shank diameter for compatibility with standard small-bore toolholders
• 0.0300-inch groove width for precise, narrow face groove profiles
• 0.0500-inch projection designed to reach face groove geometry without interference
• Minimum bore diameter of 0.2400 inches enables grooving in small internal features
• Maximum hole depth of 7/8 inch suits typical shallow-to-mid-depth bore applications

Compatibility

Designed as an OEM-style replacement or direct-fit tooling solution for standard 5 mm shank face grooving toolholders used in CNC turning and boring applications.

Installation Notes

Installation and setup should be performed by a qualified machinist or tooling technician. Ensure the machine spindle is fully stopped and the tool turret or holder is secured before mounting or removing the grooving tool. Confirm proper shank seating and runout before initiating any cutting operation. Follow the machine tool manufacturer guidelines for tool overhang, clamping torque, and feed and speed parameters appropriate to the workpiece material.
