Carmex H23-11BSPTMT7 Carbide Thread Mill Insert Bspt

Product Description

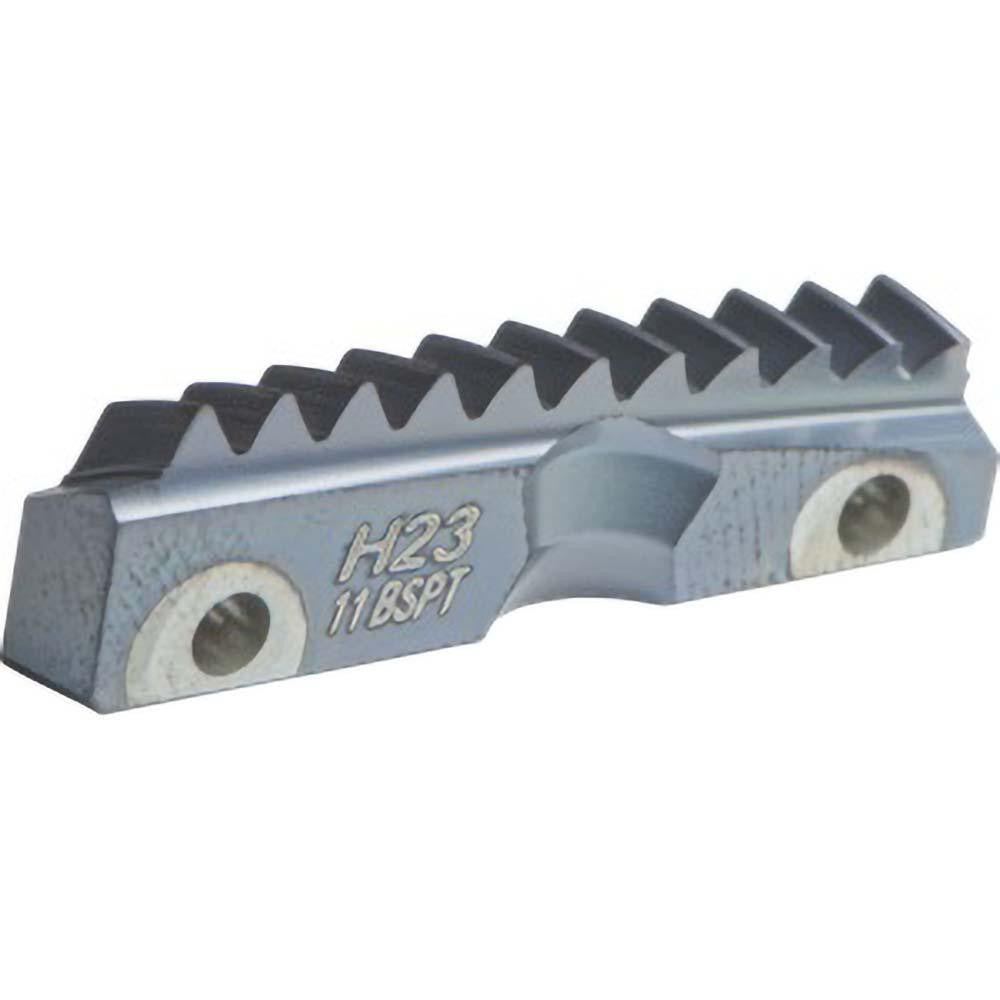

The CARMEX H23-11BSPTMT7 is a carbide thread mill insert designed for cutting BSPT (British Standard Pipe Taper) threads at 11 teeth per inch. Manufactured from submicron carbide in the MT7 grade with a TiAlN finish, this insert delivers consistent thread form and extended tool life in demanding cutting conditions. The H23 insert style supports both internal and external threading operations, making it a versatile single-tool solution for shops and field machinists working with BSPT pipe thread applications. It is not a conical insert and mounts in compatible H23-series thread mill bodies.

This insert is suited for use in CNC machining centers and thread milling operations where BSPT pipe thread profiles are required. Typical applications include manufacturing and repair of pipe fittings, hydraulic components, and pneumatic assemblies that require tapered British Standard pipe threads. The internal and external capability allows the same insert to handle both bore and OD threading in a single setup, reducing tool changes and setup time.

Key Features

• Submicron carbide substrate in MT7 grade for wear resistance and edge stability
• TiAlN coating for improved heat resistance and longer tool life
• Cuts BSPT threads at 11 TPI on internal and external features
• H23 insert style for use in compatible thread mill holders
• Non-conical geometry suited to standard BSPT thread mill programming

Compatibility

Designed for use with H23-series thread mill bodies that accept the H23 insert style. Confirm holder compatibility before ordering.

Installation Notes

Thread mill inserts should be seated and clamped per the holder manufacturer torque specifications using appropriate insert clamp screws. Ensure the spindle is fully stopped and machine is in a safe state before changing inserts. Program thread mill cycles per the CNC control's helical interpolation requirements for BSPT taper thread profiles. Verify insert seating and clamping before running the first part.
