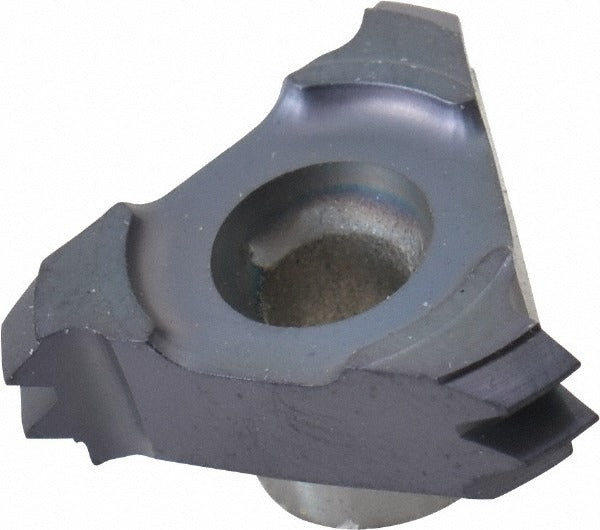

Carmex C18I2.0ISOMT7 Carbide Turning Insert Iso MT7

Product Description

The CARMEX C18I2.0ISOMT7 is a coated solid carbide threading insert designed for internal ISO thread turning operations. Built to the DIN 13 standard, this insert features a 2.00 mm pitch and is rated for both left-hand and right-hand cutting, making it a versatile option for threading bores on CNC lathes and manual threading setups. The MT7 manufacturer grade indicates a submicron carbide substrate with a coated finish, suited for threading a range of common engineering materials. Weighing 0.09 pounds, it is a compact, single-edge precision insert that fits C18 style toolholders.

This insert is intended for internal threading applications where ISO metric thread profiles at a 2.00 mm pitch are required. It is appropriate for use in production machining environments, job shops, and maintenance repair operations where consistent thread form and tool life are priorities. The coated submicron carbide construction supports use across a variety of workpiece materials including steel, stainless, and alloy metals. Installation requires a compatible C18 style insert pocket and appropriate clamping hardware per the toolholder specification.

Key Features

• Solid carbide substrate with coated finish for extended tool life
• Submicron material grade for consistent edge integrity under threading loads
• 2.00 mm internal pitch conforming to ISO and DIN 13 standards
• Compatible with both left-hand and right-hand cutting directions
• C18 insert style for use with standard C18 toolholder pockets
• MT7 manufacturer grade suited for a broad range of engineering materials

Compatibility

Designed for use in C18 style internal threading toolholders configured for ISO metric thread profiles at a 2.00 mm pitch, conforming to DIN 13 standards.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Power down and lock out the machine before changing inserts. Seat the insert fully in the toolholder pocket and secure with the appropriate clamping screw using the toolholder manufacturer's recommended procedure. Inspect the insert pocket for debris or wear before seating a new insert to ensure proper contact and thread form accuracy.
