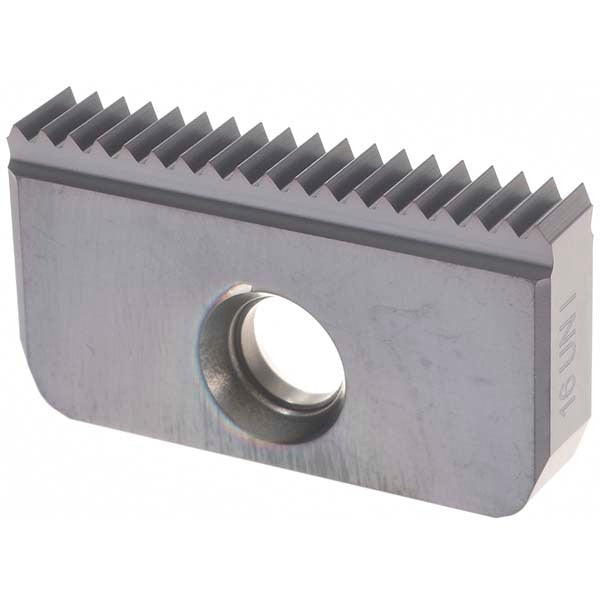

Carmex 30I16UNMT7 Carbide Thread Mill Insert 16 Tpi

Product Description

The CARMEX 30I16UNMT7 is a carbide thread mill insert engineered for internal UN threading operations at 16 teeth per inch (TPI). Built from submicron carbide and coated with TiAlN (Titanium Aluminum Nitride), this insert delivers high heat resistance and extended tool life in demanding thread milling applications. The MT7 manufacturer grade designates the specific substrate and coating combination suited for a wide range of ferrous and non-ferrous materials. At 0.217 inches (5.5 mm) thick, the insert profile is compact and consistent with the Style 30I form factor. This insert is installed by machinists and tooling technicians operating CNC milling centers.

This insert is used in thread milling applications where internal UN-standard threads must be produced with precision. The UN thread standard (ANSI B1.1-1989) governs Unified National thread forms common in North American machining environments. At 16 TPI, this insert suits medium-pitch thread production in typical hole diameters encountered in production machining, job shop work, and precision component manufacturing.

Key Features

• Submicron carbide substrate for improved toughness and wear resistance
• TiAlN coating provides high-temperature resistance and reduced tool wear in dry or semi-dry cutting
• 16 TPI pitch for internal UN thread forms per ANSI B1.1-1989
• Style 30I insert geometry, non-conical profile
• MT7 manufacturer grade for consistent performance across compatible thread mill bodies
• Certified to CE, ISO 9001:2015, ISO 13485:2016, ISO 14001:2015, and ISO 45001 standards

Compatibility

Designed for use with thread mill bodies accepting the Style 30I insert in internal UN threading applications at 16 TPI. Verify seating pocket dimensions and clamping specifications against your tool body documentation before installation.

Installation Notes

This insert is installed by qualified machinists or tooling technicians on CNC milling equipment. Power down and lock out the spindle before changing inserts. Use the appropriate torx or hex key as specified by the tool body manufacturer for clamping torque. Inspect the seating pocket for chips or wear before seating the new insert to ensure proper contact and runout.
