Carmex 22UER4ACMEP30 Threading Insert 4 Tpi 1/2 Inch Ic P30

Product Description

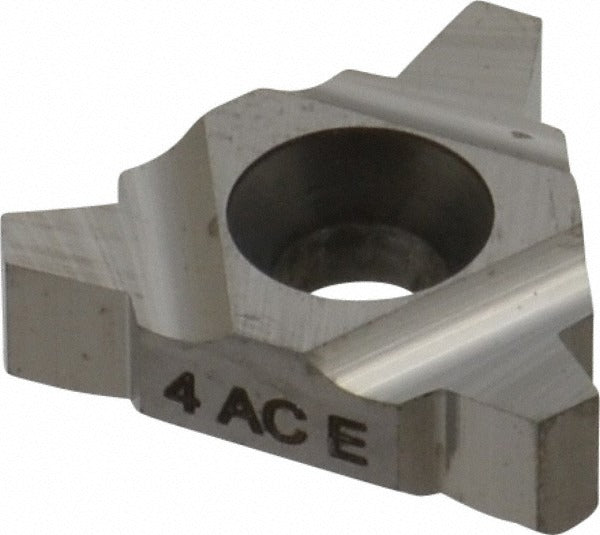

The CARMEX 22UER4ACMEP30 is a solid carbide, uncoated laydown threading insert designed for cutting external Acme threads at 4 threads per inch (TPI). With a 1/2-inch inscribed circle and a thickness of 0.187 inches, this insert fits standard 22U-style toolholders and handles both left-hand and right-hand threading operations. The P30 grade (material grade C5) makes it well-suited for a wide range of workpiece materials. Machinists and toolroom operators use this insert for precise Acme thread profiles on lathes and CNC turning centers.

This insert is intended for external Acme threading applications across a broad spectrum of materials, including steel, stainless steel, cast iron, non-ferrous alloys, and heat-resistant alloys. Its universal workpiece material rating (material codes H, K, M, N, P, S) makes it a practical choice in job shops and production environments where operators work across multiple material types. The 29-degree included angle conforms to standard Acme thread geometry, ensuring accurate thread form on finished parts.

Key Features

• Solid carbide construction, uncoated, for consistent thread form and dimensional accuracy
• Cuts external Acme threads at 4 TPI with a 29-degree included angle
• Handles both left-hand and right-hand threading in a single insert style
• P30 grade (C5 material grade) rated for universal workpiece material compatibility
• 22U insert style with 1/2-inch inscribed circle fits standard 22UER/L toolholders
• Manufactured to CE, ISO 13485:2016, ISO 14001:2015, and ISO 45001 standards

Compatibility

Designed for use in 22UER/L-style laydown threading toolholders for external Acme thread cutting applications. Compatible with the workpiece material codes H, K, M, N, P, and S as specified by the manufacturer.

Installation Notes

Installation is performed by a qualified machinist or CNC operator. Power down and lock out the machine before seating or replacing inserts. Secure the insert firmly in the toolholder pocket according to the toolholder manufacturer's torque specifications before resuming operations. Inspect the insert seating surface and clamping hardware for wear or debris before each use to ensure accurate thread form.
