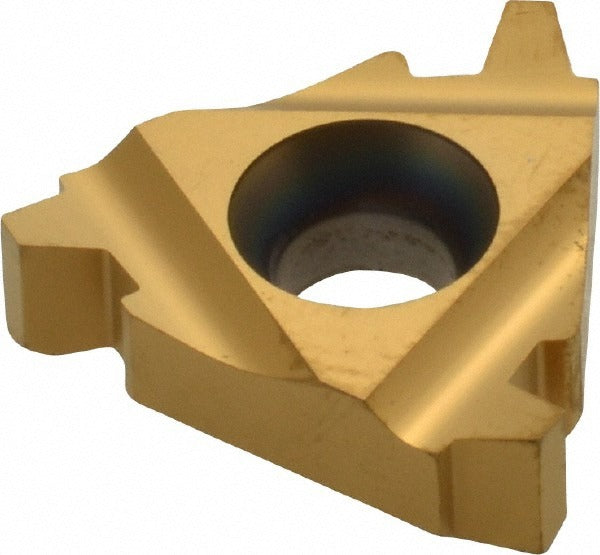

Carmex 22IR6ACMEP25C Threading Insert 6 Tpi Acme Carbide

Product Description

The CARMEX 22IR6ACMEP25C is a solid carbide laydown threading insert designed for internal Acme thread cutting at 6 threads per inch. It carries a P25C manufacturer grade with an M2 material grade of C5 carbide, making it suitable for a wide range of workpiece materials including steel, stainless, cast iron, non-ferrous metals, and high-temp alloys. The insert features a PVD-applied TiN coating for improved wear resistance and a 29-degree included angle specific to the Acme thread form. With a 0.5000-inch inscribed circle and a thickness of 0.1870 inches, this insert fits standard 22IR-style toolholders. Installation is performed by licensed machinists and CNC operators in production or job-shop turning applications.

This insert is used for right-hand internal Acme threading operations on CNC lathes and manual turning centers. The Acme thread form is common in lead screws, power transmission components, and linear motion assemblies. The 6 TPI pitch suits coarser thread applications found in industrial machinery, hydraulic actuators, and heavy-duty mechanical systems. Its universal primary workpiece material rating means it performs across a broad spectrum of materials without requiring grade changes for typical shop variety.

Key Features

• Solid carbide construction with PVD TiN coating for extended tool life
• P25C grade with C5 material designation for versatile cross-material use
• 29-degree included angle matches Acme thread form geometry precisely
• Right-hand internal thread orientation for standard Acme lead screw bores
• 0.5000-inch inscribed circle fits 22IR-style toolholders directly
• Certified to ISO 13485:2016, ISO 14001:2015, and ISO 45001 standards

Compatibility

Designed as an OEM-style replacement for 22IR insert-style internal threading toolholders. Fits toolholders accepting the 22IR insert style with a 0.5000-inch inscribed circle seating geometry.

Installation Notes

Installation is performed by machinists or CNC tooling technicians. Power down and lock out the machine spindle before seating or removing the insert. Ensure the toolholder pocket and clamping screw are clean and free of chips before installing. Follow the toolholder manufacturer torque specifications for the clamping fastener, and verify insert seating before resuming cutting operations.
