Carmex 16IRG60BMA Threading Insert Solid Carbide Tialn

Product Description

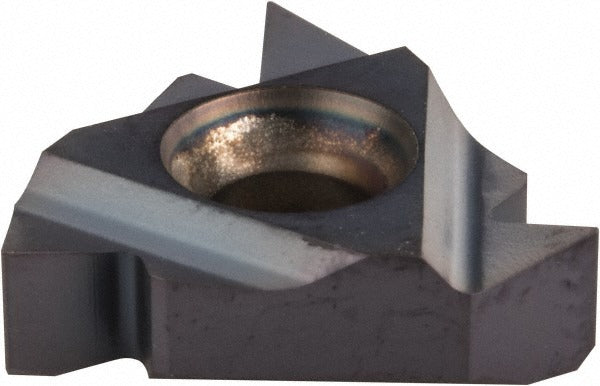

The CARMEX 16IRG60BMA is a laydown threading insert designed for internal thread cutting operations on CNC lathes and turning centers. Built from submicron solid carbide and finished with a PVD-applied TiAlN coating, this insert delivers consistent performance across a broad range of workpiece materials. It cuts right-hand internal threads with a 60-degree included angle and covers a thread pitch range of 14 to 8 TPI (1.75 to 3.00 mm pitch), making it a partial profile insert suited for general threading work. Machinists and CNC operators in production and job-shop environments rely on this style of insert for its secure laydown seating and repeatable thread geometry.

This insert is appropriate for use in residential and industrial machining environments where internal threading is performed on ferrous metals, non-ferrous alloys, stainless steels, heat-resistant superalloys, and other universal workpiece materials. The BMA grade designates a submicron carbide substrate optimized for threading across material groups coded H, K, M, N, P, and S, covering cast iron, non-ferrous, stainless, general steel, and high-temperature alloys. It is a single insert sold individually, with a minimum order quantity of 10 units per transaction.

Key Features

• Submicron solid carbide substrate with PVD TiAlN coating for extended tool life
• Right-hand internal partial profile threading at 60-degree included angle
• Thread range: 14 to 8 TPI (1.75 to 3.00 mm pitch)
• Inscribed circle diameter of 0.3750 inches (3/8 inches) for standard toolholder compatibility
• Corner radius of 0.0050 inches for controlled thread root geometry
• Laydown insert style with 0.1460 inches thickness for rigid, repeatable seating
• Certified to CE, ISO 13485:2016, ISO 14001:2015, and ISO 45001 standards

Compatibility

Designed as an OEM-style replacement or direct-use threading insert for 16IR-style laydown insert toolholders accepting a 3/8-inch inscribed circle insert with a 60-degree thread form geometry.

Installation Notes

Installation is performed by qualified CNC machinists or tool-setup technicians. Power down and lock out the machine before seating or indexing the insert. Use the correct insert screw torque driver specified by the toolholder manufacturer to avoid cracking the carbide substrate. Confirm thread pitch and hand orientation against the toolholder and program before resuming cutting operations.
