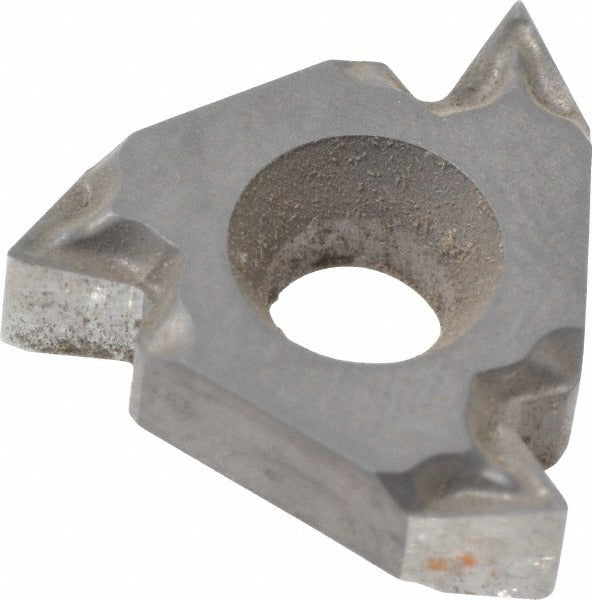

Carmex 16IRBG60P30 Threading Insert 3/8 Ic 60 Deg P30

Product Description

The CARMEX 16IRBG60P30 is a solid carbide laydown threading insert designed for internal partial profile 60-degree thread cutting on CNC lathes and manual turning centers. Manufactured in the P30 grade carbide with an uncoated finish, this right-hand insert handles a thread range of 14 to 8 TPI, with a metric pitch range of 1.75 mm to 3.00 mm. The 3/8-inch inscribed circle (0.3750 inches) and 0.146-inch thickness conform to the 16IR insert style standard. Solid carbide construction provides the rigidity and wear resistance required for consistent thread form accuracy across a broad range of workpiece materials.

This insert is suited for internal threading operations in turning applications across universal workpiece material grades, including ferrous metals, cast irons, stainless steels, non-ferrous alloys, high-temp alloys, and general-purpose materials. The B chipbreaker geometry supports chip control during threading passes in through-bores and blind-bore applications. It is primarily installed by CNC machinists and toolroom technicians in production and job shop environments where repeatable 60-degree thread profiles are required.

Key Features

• Solid carbide P30 grade construction for broad material compatibility and wear resistance
• Right-hand internal partial profile 60-degree thread form covering 14 to 8 TPI
• Metric pitch range of 1.75 mm to 3.00 mm for metric threading applications
• Uncoated finish maintains sharp edge geometry for precise thread form control
• B chipbreaker geometry aids chip evacuation during internal threading passes
• Conforms to 16IR insert style for use with compatible laydown threading toolholders

Compatibility

Designed as an OEM-style replacement laydown threading insert for 16IR-style internal threading toolholders. Compatible with workpiece material codes H, K, M, N, P, and S per ISO material classification, covering a universal range of workpiece materials.

Installation Notes

Installation is performed by a qualified CNC machinist or toolroom technician. Power down and lock out the machine spindle before seating or replacing the insert in the toolholder. Ensure the insert pocket is clean and free of chips or debris before clamping to maintain proper seating and thread form accuracy. Follow the toolholder manufacturer torque guidelines for the clamping screw - do not overtighten.
