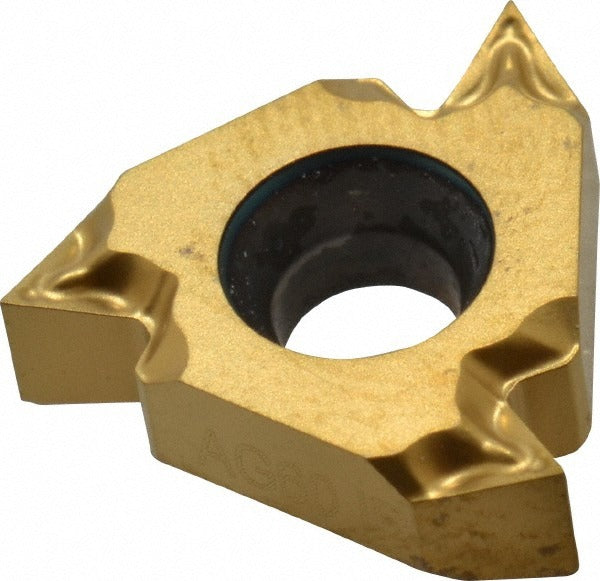

Carmex 16IRBAG60P25C Threading Insert Solid Carbide 3/8 Ic

Product Description

The CARMEX 16IRBAG60P25C is a solid carbide laydown threading insert designed for internal thread cutting operations. It features a 60-degree included angle and a partial profile configuration, making it suitable for cutting threads across a range of pitches from 48 TPI down to 8 TPI (0.50 mm to 3.00 mm pitch). The insert carries a P25C manufacturer grade and C5 material grade, with a PVD-applied TiN coating for wear resistance. With a 3/8-inch (0.3750-inch decimal) inscribed circle and a thickness of 0.1460 inches, this right-hand insert fits standard laydown toolholders used in CNC and manual turning applications. Installation and use are suited to professional machinists and toolroom technicians.

This insert is intended for internal threading on a wide range of workpiece materials, including steel, stainless steel, cast iron, non-ferrous metals, and high-temperature alloys, corresponding to material codes H, K, M, N, P, and S. It is used in CNC lathes and turning centers where laydown-style threading inserts are required. The B chipbreaker geometry assists with chip control during threading passes. It is sold individually with a minimum order quantity of 10 units.

Key Features

• Solid carbide construction with PVD TiN coating for extended tool life
• Right-hand internal threading, 60-degree partial profile
• Covers 48 to 8 TPI range (0.50 mm to 3.00 mm pitch)
• 3/8-inch inscribed circle, 0.1460-inch thickness for laydown toolholder compatibility
• B chipbreaker for improved chip control on internal threading operations
• Universal material grade - suitable for steel, stainless, cast iron, non-ferrous, and superalloys

Compatibility

Designed for use with laydown-style internal threading toolholders accepting a 3/8-inch (16IR series) insert. Compatible workpiece material codes include H, K, M, N, P, and S per ISO classification.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Secure the insert firmly in the toolholder pocket using the appropriate clamping screw and torx key before beginning any threading operation. Ensure the machine spindle is fully stopped and the toolholder is clear of the workpiece before seating or removing the insert. Verify thread pitch and insert orientation against the part drawing before engaging the threading cycle.
