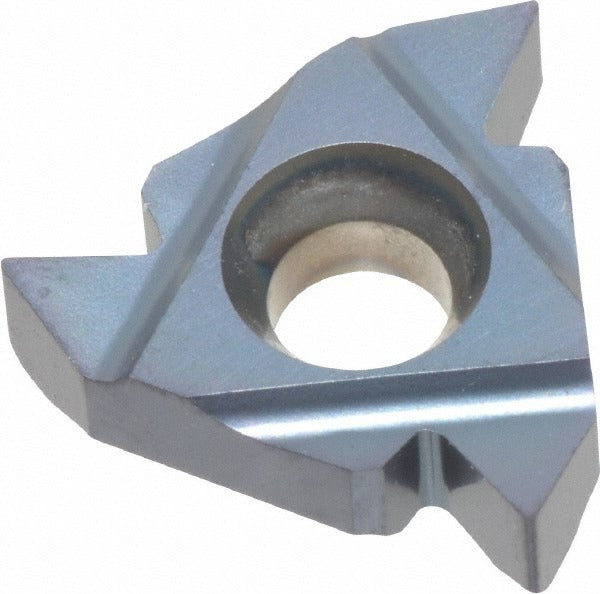

Carmex 16ERG60BMA Threading Insert 60 Deg Solid Carbide

Product Description

The CARMEX 16ERG60BMA is a solid carbide laydown threading insert designed for external partial profile threading operations. It cuts a 60-degree included angle thread profile and covers a range of 14 to 8 threads per inch, with a metric pitch equivalence of 1.75 to 3.00 mm. The insert features a PVD-applied TiAlN coating over a submicron carbide substrate, providing wear resistance and thermal stability across a wide range of workpiece materials. Right-hand cutting geometry makes it suitable for standard external thread turning on CNC lathes and turning centers. Installation and replacement are handled by machinists and CNC turning specialists.

This insert is rated for universal workpiece material compatibility, covering material groups including cast iron, hardened materials, stainless steel, non-ferrous, steel, and heat-resistant superalloys. It is appropriate for general-purpose external threading in both production and job-shop environments. The 3/8-inch inscribed circle and 16 ER insert style make it compatible with standard 16 ER toolholders used in lathe threading applications across residential shop, industrial, and contract manufacturing settings.

Key Features

• Solid carbide submicron grade substrate for improved edge strength and wear life
• PVD TiAlN coating for enhanced heat resistance and extended tool life
• 60-degree included angle for unified and metric partial profile external threading
• Covers 14 to 8 TPI range (1.75 to 3.00 mm pitch)
• Right-hand cutting orientation for standard external thread turning
• CE certified and manufactured under ISO 13485:2016, ISO 14001:2015, and ISO 45001 quality and environmental standards

Compatibility

Designed for use in standard 16 ER style laydown threading toolholders for external thread turning. Compatible with universal workpiece material groups designated H, K, M, N, P, and S per ISO material classification.

Installation Notes

This insert is installed and changed by machinists or CNC turning technicians. Power down and lock out the machine before indexing or replacing inserts. Use the correct torque wrench and insert clamp hardware specified by the toolholder manufacturer. Inspect seating surfaces and clamping components for wear or debris before installing a new insert to ensure accurate positioning and safe operation.
