Carmex 16ER16UNBMA Threading Insert 16 Tpi Solid Carbide

Product Description

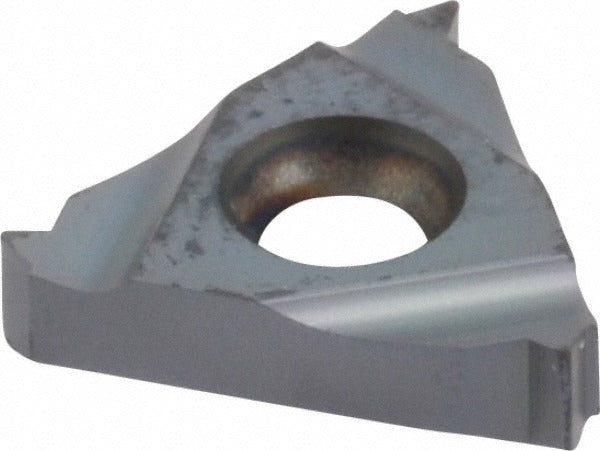

The CARMEX 16ER16UNBMA is a solid carbide laydown threading insert designed for right-hand external UN thread cutting at 16 threads per inch (TPI). Manufactured from submicron-grade carbide and finished with a PVD-applied TiAlN coating, this insert delivers consistent thread form in a wide range of workpiece materials. It carries a 3/8 inch (0.375 inch) inscribed circle, a thickness of 0.146 inches, and a 60-degree included angle standard to Unified National thread profiles. Licensed machinists and CNC tool setup technicians typically specify this insert for precision external threading operations on lathes and turning centers.

This insert is suited for external UN threading applications across a broad material spectrum, including steel, stainless steel, cast iron, non-ferrous alloys, and high-temperature alloys, reflected in its H, K, M, N, P, and S workpiece material codes. It is appropriate for both production and job-shop environments where repeatable thread quality and long tool life are required. The TiAlN PVD coating supports dry or minimal-lubrication cutting conditions and helps resist heat buildup at the cutting edge during continuous threading passes.

Key Features

• Solid submicron carbide substrate for high wear resistance and edge stability
• PVD TiAlN coating supports elevated cutting temperatures and extends insert life
• 16 TPI, 60-degree included angle for standard Unified National external thread form
• 3/8 inch inscribed circle (0.375 inch) with 0.146 inch thickness for laydown-style toolholders
• 0.007 inch corner radius for controlled thread root geometry
• Universal material grade rating covers steel, stainless, cast iron, non-ferrous, and superalloys
• Manufactured to CE, ISO 13485:2016, ISO 14001:2015, and ISO 45001 standards

Compatibility

Designed as an OEM-style replacement or direct application insert for laydown-style external threading toolholders accepting the 16 ER insert style and a 3/8 inch inscribed circle seating geometry.

Installation Notes

Installation and indexing should be performed by a qualified machinist or CNC tooling technician. Always power down and lock out the machine before seating or indexing the insert. Use the correct torque wrench and manufacturer-specified clamping screw to secure the insert in the toolholder - do not overtighten by hand. Confirm thread pitch and insert orientation match the programmed toolpath before resuming cutting operations.
