Carmex 11IR14NPTBMA Threading Insert Npt 14 Tpi Carbide

Product Description

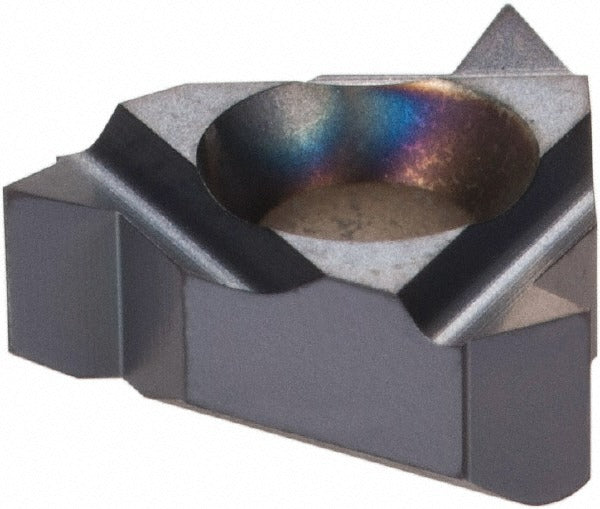

The CARMEX 11IR14NPTBMA is a solid carbide laydown threading insert designed for cutting internal NPT (National Pipe Taper) threads on a lathe or CNC turning center. It carries a TiAlN PVD coating applied via physical vapor deposition, which extends tool life in a wide range of workpiece materials. The insert runs at a 30-degree included angle, delivers 14 threads per inch, and measures a 1/4-inch inscribed circle with a thickness of 0.127 inches. It is a right-hand insert intended for internal threading operations and is suitable for universal workpiece material categories. Machinists and CNC operators in production and job-shop environments install this insert when threading pipe fittings, valves, or any component requiring a standard NPT taper thread form.

This insert is intended for internal NPT threading applications in residential and commercial pipe and fitting production, valve bodies, and fluid-system components. The universal material compatibility rating covers a broad spectrum of workpiece materials, including carbon steels, stainless steels, cast irons, non-ferrous metals, high-temperature alloys, and hardened materials. It is suited for turning operations where a consistent, accurate NPT taper thread profile is required across medium to high production volumes. The minimum order quantity for this insert is 10 pieces, sold individually per package.

Key Features

• Solid carbide substrate for rigidity and wear resistance in threading operations
• TiAlN PVD coating extends tool life across universal workpiece material categories
• 14 TPI internal NPT thread form with a 30-degree included angle
• Right-hand cut, laydown insert style for stable seating in compatible toolholders
• 1/4-inch inscribed circle with 0.127-inch thickness for consistent insert geometry
• Certified to CE, ISO 13485:2016, ISO 14001:2015, and ISO 45001 standards

Compatibility

Designed as a replacement or production-run threading insert for toolholders accepting the 11IR insert style. Compatible with universal workpiece material codes H, K, M, N, P, and S as classified by ISO material groupings. No specific machine or toolholder model numbers were provided in the product data.

Installation Notes
