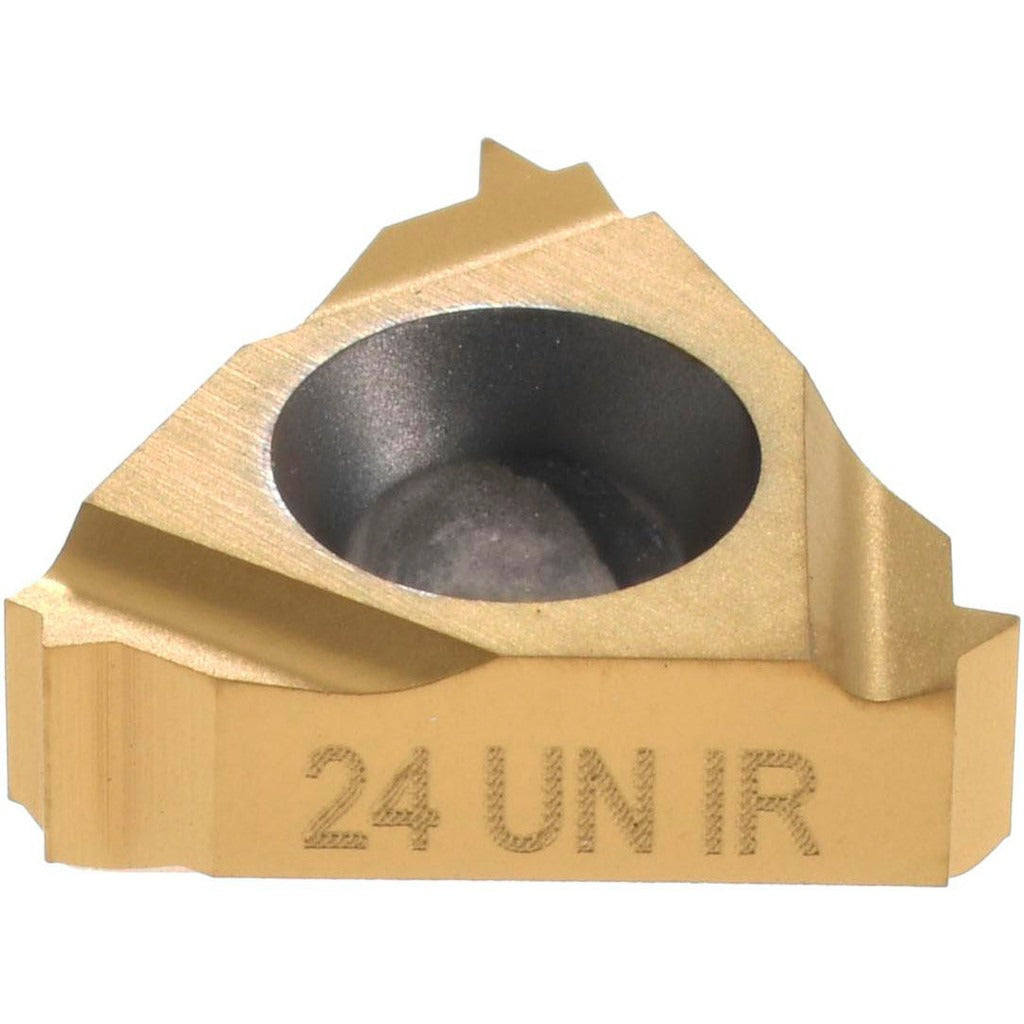

Carmex 11INRH24UNMXC/G Threading Insert 24 Tpi Carbide Tin

Product Description

The CARMEX 11INRH24UNMXC/G is a solid carbide laydown threading insert engineered for right-hand internal UN thread cutting at 24 threads per inch (TPI). Built to the 11IR insert style with a 1/4-inch inscribed circle and a thickness of 0.127 inches, this insert carries a PVD-applied TiN (titanium nitride) coating and is manufactured to the MXC grade. It is designed for use in CNC lathes and turning centers performing internal threading operations. The 60-degree included angle conforms to the UN thread standard. Licensed machinists and CNC operators working in production and job-shop environments are the primary users of this insert.

This insert is suited for internal UN thread applications across a broad range of workpiece materials. The universal H, K, M, N, P, and S material codes indicate compatibility with hardened steels, cast irons, stainless steels, non-ferrous metals, steel alloys, and heat-resistant superalloys. It is appropriate for both light production runs and general-purpose threading on CNC turning equipment where consistent thread form and tool life are priorities.

Key Features

• Solid carbide substrate with PVD TiN coating for wear resistance across universal workpiece material groups
• Right-hand internal UN thread form at 24 TPI with a 60-degree included angle
• 11IR laydown insert style with 1/4-inch inscribed circle and 0.127-inch thickness
• MXC manufacturer grade for broad material compatibility
• Meets CE, ISO 13485:2016, ISO 14001:2015, and ISO 45001 standards
• Sold individually; minimum order quantity is 10 pieces

Compatibility

Designed as an OEM-style threading insert for use in 11IR-style laydown threading toolholders configured for internal UN thread cutting at 24 TPI.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator following the toolholder manufacturer's clamping specifications. Ensure the machine spindle is fully stopped and the CNC program is in a safe state before indexing or replacing inserts. Use the correct torx or clamping key for the toolholder seat to avoid seat damage. Verify thread pitch and insert orientation against the part program before resuming cuts.
