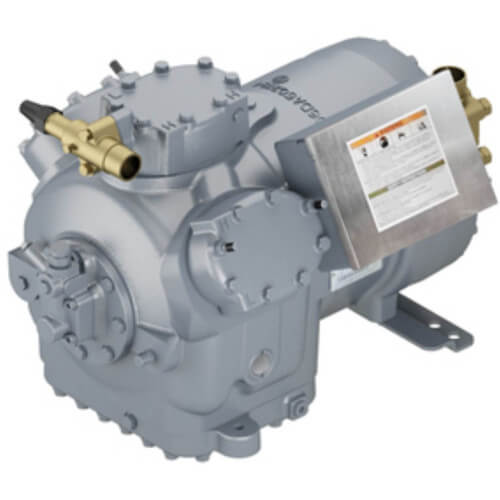

Carlyle 06DS3286BC3650 Compressor Medium-High Temp 460V 3-Phase Replacement MPN

Product Description

The Carlyle 06DS3286BC3650 is a medium-high temperature compressor designed for efficient cooling and heating applications. This semi-hermetic compressor features a high-flow oil pump for reliable lubrication and a crankcase venting system that balances pressure during startup. The oversized sump capacity helps maintain oil levels for safe operation even during flooded starts. Its unique piston design enhances capacity and efficiency while high-efficiency valves support improved refrigerant flow. It includes an electronic oil-pressure switch to manage oil levels effectively.

• High-flow reversible oil pump for lubrication
• Oversized sump to maintain oil levels
• Electronic oil-pressure switch included

Product Highlights

This compressor is suitable for various HVAC applications and offers reliability with easy installation.

Product Information

Standard Information

• Brand: Carlyle
• Part Number: 06DS3286BC3650

Technical Specifications

• Weight: 227 lbs
• CFM: 28
• Housing Type: Semi-Hermetic
• Compressor Type: Reciprocating
• Voltage: 460 VAC (50 Hz); 529 VAC (60 Hz)
• Dimensions: 25.5 x 20 x 23 inches
• Phase: Three
• Oil Type: Alkylbenzene (AB), Mineral (MO), Polyolester (POE)
• Overload Type: Thermal
• Refrigerant Compatibility: Various
• UL Listed: True
• CSA Listing: True
• Country of Origin: USA
