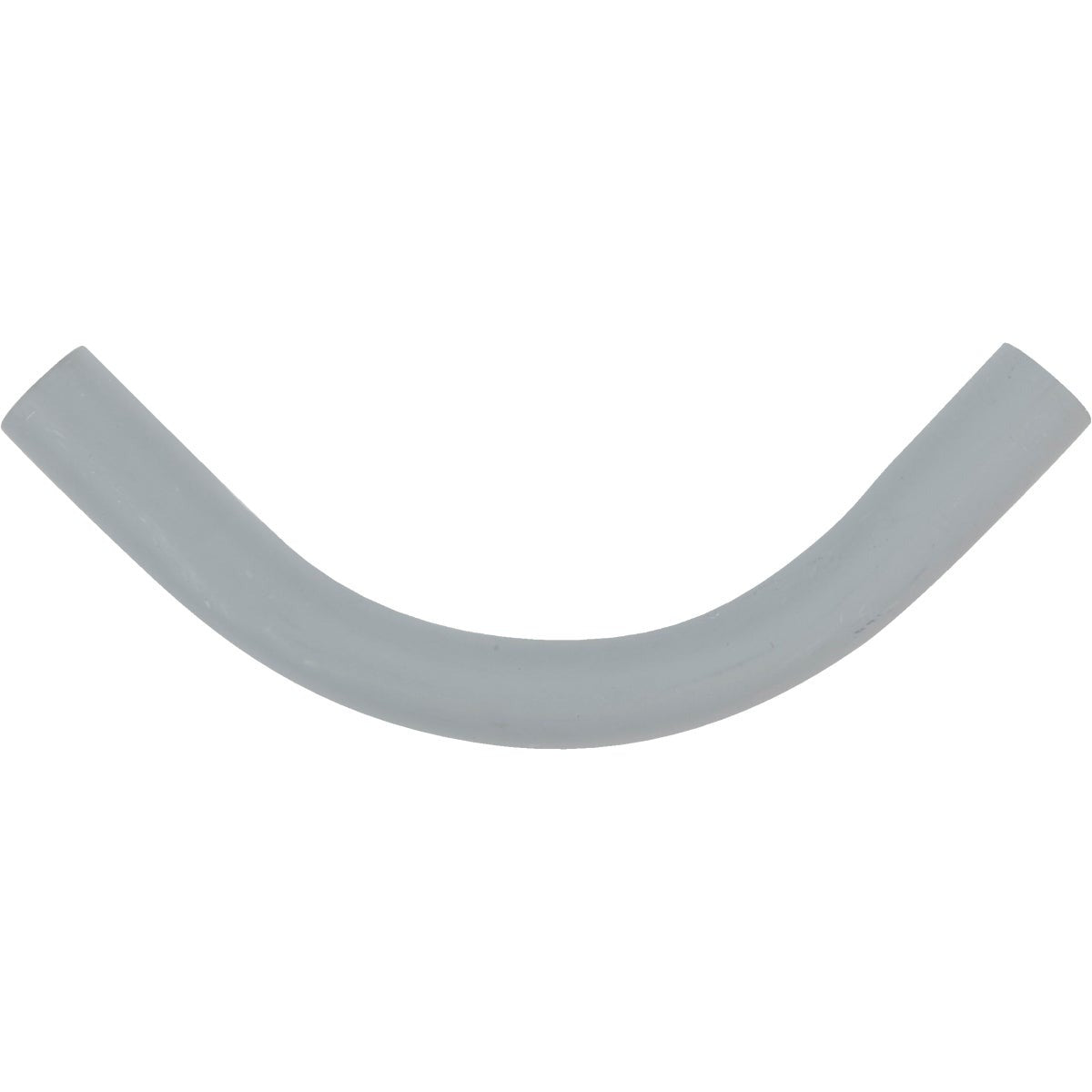

Carlon UA9AERCTN Pvc Schedule 40 90 Degree Conduit Elbow

Product Description

The CARLON UA9AERCTN is a Schedule 40 PVC 90-degree conduit elbow rated for electrical raceway applications. Manufactured from polyvinyl chloride, this elbow provides a smooth, corrosion-resistant sweep for routing electrical conduit through tight directional changes. The 3/4 inch trade size fits standard Schedule 40 PVC conduit and fittings of the same trade size. UL Listed for use in electrical installations where code-compliant conduit systems are required. Licensed electricians and electrical contractors are the primary installers of this fitting in both residential and light commercial wiring projects.

This elbow is suited for dry, damp, and wet location conduit runs where PVC raceway is the specified system. Common applications include underground feeder runs, exterior wall routing, and in-slab conduit installations. It handles directional changes at 90 degrees, making it a standard component in panel feeds, branch circuit rough-in, and service entrance conduit work. Couplings are not included and must be sourced separately to complete conduit joints at each end of the elbow.

Key Features

• Schedule 40 PVC construction resists corrosion, moisture, and many common chemicals
• 90-degree sweep for clean directional changes in conduit runs
• 3/4 inch trade size fits standard Schedule 40 PVC conduit and compatible fittings
• UL Listed for use in code-compliant electrical raceway systems
• Lightweight at 0.2 pounds, reducing handling fatigue on large conduit jobs

Compatibility

Designed as an OEM-style replacement and standard component for 3/4 inch Schedule 40 PVC electrical conduit systems.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize all circuits and lock out power before working on any conduit system connected to live electrical equipment. Solvent-weld cement appropriate for Schedule 40 PVC conduit fittings is required to secure joints; couplings are sold separately. Do not use pipe-thread sealants or adhesives not rated for PVC electrical conduit.
