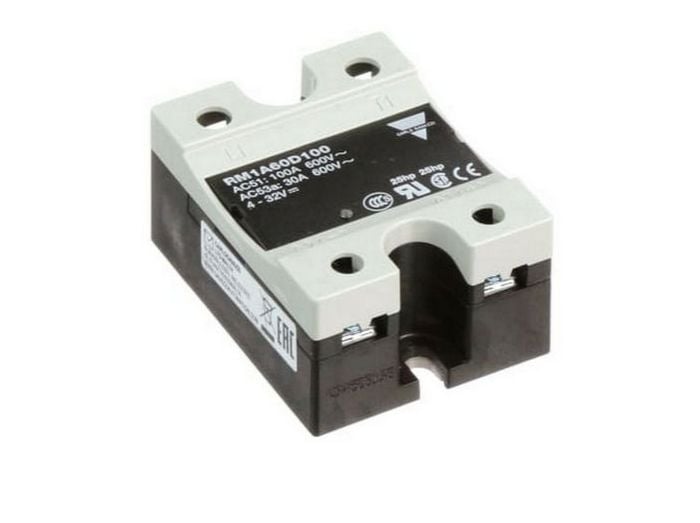

Carlo Gavazzi RM1A60D100 Solid State Relay 100A

Brand: CARLO GAVAZZI
SKU: RM1A60D100
Availability: In Stock

Ships same day if ordered by 12 pm
$171.04
$171.04
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The CARLO GAVAZZI RM1A60D100 is a 1-pole panel mount SSR with zero-cross switching. It features an operating voltage of 42 - 660 Vac (1400 Vp) and a rated current of 100 Aac. The control voltage is 4 - 32 Vdc and includes built-in overvoltage protection. It can be used for resistive, inductive, and capacitive loads.

  • 1-pole panel mount SSR
  • Zero-cross switching
  • Built-in overvoltage protection

Product Highlights

Solid state relay with zero-cross switching, overvoltage protection, and a wide operating voltage range.

Product Information

Standard Information

  • Brand: CARLO GAVAZZI
  • Manufacturer Part Number: RM1A60D100
  • Country of Origin: Italy
Technical Specifications
Output switching mode
Zero cross
Number of poles
1
Rated current AC-51
100 A
Rated current AC-53a
30 A
Operating voltage
42 V ... 660 V
Control voltage AC
0 V ... 0 V
Control voltage DC
4 V ... 32 V
Power connection
Screw with captive clamp
Category
Relays
Solid State Relays (SSR)
Solid State Relays (SSR)
Voltage - Input
4 ~ 32VDC
Manufacturer
Carlo Gavazzi, Inc.
Voltage - Load
42 V ~ 660 V
Series
RM1A Series
Load Current
100 A
Packaging
Bulk
Termination Style
Screw Terminal
Part Status
Active
Operating Temperature
-20°C ~ 70°C
Mounting Type
Chassis Mount
Package / Case
Hockey Puck
Relay Type
Photo-Coupled Relay (Photorelay)
Approval Agency
CCC, CE, CSA, cURus, EAC, UKCA
Circuit
SPST-NO (1 Form A)
Base Product Number
RM1A60
Output Type
AC, Zero Cross
Product Type
RELAY
Vendor Item
RM1A60D100
Vendor Short Name
CARLO
RoHS Compliant
RoHS Compliant
Mounting Style
Panel
Type
Power Relay
Maximum Amperage
100 A
Current Rating
91-100 A
Coil Voltage
551-600 V
Model
Carlo Gavazzi RM1A60D100
MPN
RM1A60D100
UPC
0634746269461
Control Style
Switch
Outlet Style
Single
IP Rating
IP20
Product Series
RM1
Family Series
Carlo Gavazzi Relays, RM1 Series
Description
Solid State Relay, 1-P, 100A, 600VAC 4-32VDC Control, 42-660VAC Load, Zero Switching, Touchsafe
Number of Circuits
1
Input Signal
4-32 VDC
Input Polarity
DC
Output Voltage
42-660 VAC
Nominal Output Voltage
208 VAC, 347 VAC, 380 VAC, 415 VAC, 48 VAC, 575 VAC, 120 VAC, 600 VAC, 240 VAC, 480 VAC
Transient Overvoltage
1,400 V
Integral Heat Sink
No
MOV
Yes
Snubber
Yes
Net Weight
0.1323 lbs
Gross Weight
0.265 lbs
Amp Rating
100 Amp
Operating Voltage
600VAC
Output Switching
Zero Crossing
Phase
Single Phase
All - Specific Ratings
IP20 Rated
Type of Relay
Hockey Puck
Warranty
1 Year
Switching Type
Zero Cross
Status Indicator
Yes
Auxiliary Switch
No
Mounting
Surface
Termination
Screw Terminal
