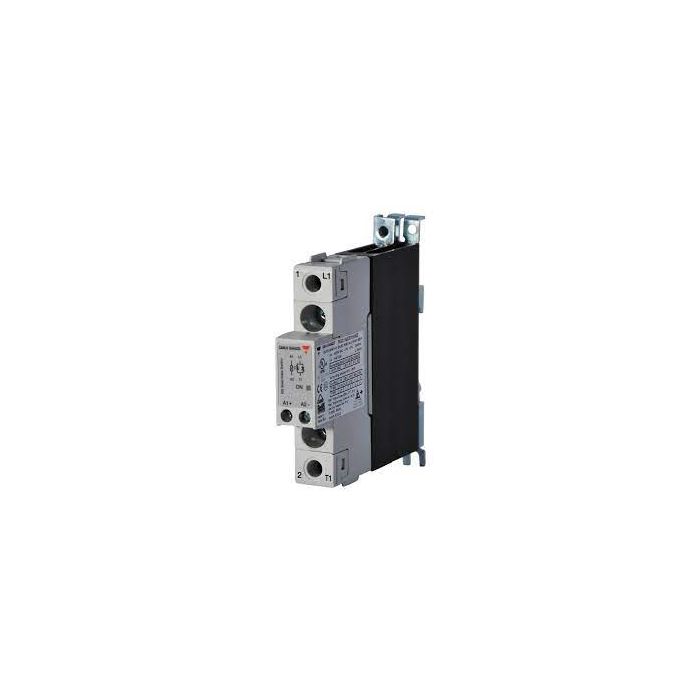

Carlo Gavazzi RGC1A60D30KKE Solid State Relay Contactor 600V 30A

Product Description

The Carlo Gavazzi RGC1A60D30KKE is a solid state relay contactor. This 1-pole relay features integrated voltage transient protection with varistor and IP20 protection. It has a short circuit current rating of 100kA and allows for safe looping of cables through power and control terminals.

• Integrated Voltage Transient Protection with Varistor
• IP20 Protection
• Short Circuit Current Rating: 100kA

Product Highlights

Maximize efficiency in panel space with this solid-state contactor, an evolution of solid-state switches.

Product Information

Standard Information

• Brand: CARLO GAVAZZI
• Manufacturer Part Number: RGC1A60D30KKE

Technical Specifications

• Current Rating: 30 A
• Maximum Switching Current: 30 Amps
• Manufacturer Part Number: RGC1A60D30KKE
• Manufacturer: Carlo Gavazzi
• Product Series: RGC1
• Family Series: Carlo Gavazzi Relays, RGC1 Series
• Description: Solid State Relay, 1-P, 30A, 600VAC, 4-32VDC Control, 42-600VAC Load, Zero Crossing, DIN Mnt, w/Heatsink
• Circuit: SPST-NO (1 Form A)
• Mounting: Surface
• Status Indicator: Yes
• Auxiliary Switch: No
• Number of Circuits: 1
• Input Signal: 3-32 VDC
• Input Polarity: DC
• Output Voltage: 600 VAC
• Nominal Output Voltage: 600 VAC
• Termination: Screw Terminal
• Output Type: AC, Zero Cross
• Switching Type: Zero Cross
• Integral Heat Sink: Yes
• MOV: Yes
• Snubber: No
• Product Type: CONTACTOR
• Vendor Item: RGC1A60D30KKE
• Vendor Short Name: CARLO
• RoHS Compliant: RoHS Compliant
• Load Current: 30 A
• Series: RGC
• Voltage - Input: 4 ~ 32VDC
• Voltage - Load: 42 ~ 600V
• Part Status: Active
• Mounting Type: Chassis Mount, DIN Rail
• Package / Case: SSR with Integrated Heat Sink
• Base Product Number: RGC1A60
• RoHS Status: ROHS3 Compliant
• Brand: CARLO GAVAZZI
