Carlo Gavazzi RGC1A60D20KKE Solid State Relay 23A

Product Description

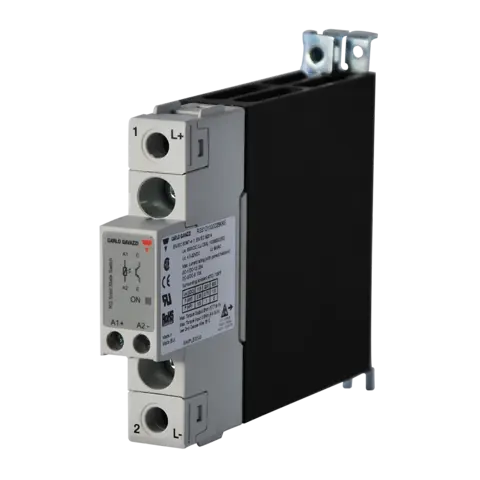

The CARLO GAVAZZI RGC1A60D20KKE is a 1-pole DIN-rail mount solid state relay with E-layout and zero-cross switching. It features an operating voltage of 42 - 660 Vac (1200 Vp), a rated current of 23 Aac, and a control voltage of 4 - 32 Vdc. Built-in overvoltage protection is included. Power and control terminals allow for safe looping of cables.

• 1-pole DIN-rail mount SSR
• Zero-cross switching
• Built-in overvoltage protection

Product Highlights

This solid state relay maximizes efficiency in panel space and is an evolution of solid state switches.

Product Information

Standard Information

• Brand: CARLO GAVAZZI
• Manufacturer Part Number: RGC1A60D20KKE

Technical Specifications

• Output switching mode: Zero cross
• Number of poles: 1
• Rated current AC-51: 23 A
• Rated current AC-53a: 5 A
• Operating voltage: 42 V ... 660 V
• Control voltage DC: 4 V ... 32 V
• Power connection: Screw with captive clamp
• Manufacturer Part Number: RGC1A60D20KKE
• Manufacturer: Carlo Gavazzi
• Product Series: RGC1
• Family Series: Carlo Gavazzi Relays, RGC1 Series
• Description: Solid State Relay, 1-P, 20A, 600VAC, 4-32VDC Control, 42-600VAC Load, Zero Switching, w/Integral Heatsink
• Circuit: SPST-NO
• Mounting: Chassis Mount, DIN Rail
• Status Indicator: Yes
• Auxiliary Switch: No
• Number of Circuits: 1
• Input Signal: 3-32 VDC
• Input Polarity: DC
• Output Voltage: 600 VAC
• Nominal Output Voltage: 600 VAC
• Current Rating: 23 A
• Termination: Screw Terminal
• Output Type: SCR AC Switch
• Switching Type: Zero Cross
• Integral Heat Sink: Yes
• MOV: Yes
• Snubber: No
• Contact Current Rating: 23 A
• Contact Form: SPST-NO
• Control Voltage: 4-32 VDC
• Function: Zero-Switching
• Series: RG Series
• Voltage Rating: 42 to 660 V
• Load Current: 23 A
• Voltage - Input: 4 ~ 32VDC
• Voltage - Load: 42 ~ 600V
• Part Status: Active
• Package / Case: SSR with Integrated Heat Sink
• Base Product Number: RGC1A60
