Carlo Gavazzi RGC1A60D15KKE Solid State Relay 20 Amps REPLACEMENT RGC1A60D15KKE

Product Description

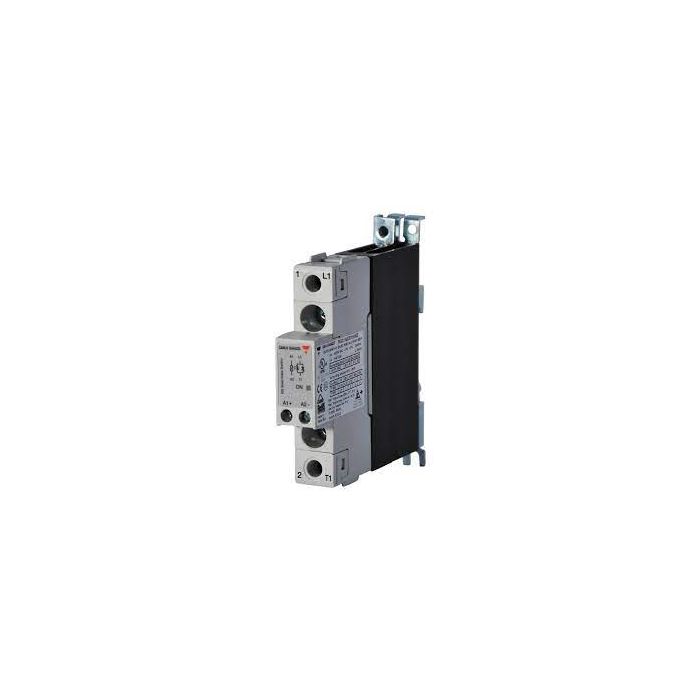

The CARLO GAVAZZI RGC1A60D15KKE is a solid state relay with a 32V DC input and a 20A 600V AC output. It maximizes efficiency in panel space. The power and control terminals allow for safe looping of cables. It also features integrated voltage transient protection with varistor and IP20 protection.

• Integrated Voltage Transient Protection with Varistor
• IP20 Protection
• Short Circuit Current Rating: 100kA

Product Highlights

Solid state relay with 32V DC input, 20A 600V AC output, integrated voltage transient protection and IP20 protection.

Product Information

Standard Information

• Brand: CARLO GAVAZZI
• Manufacturer Part Number: RGC1A60D15KKE

Technical Specifications

• Connector Type: Through Hole Or Screw
• Contact Type: Normally Open
• Current Rating: 20 A
• Mounting Type: DIN Rail Mount
• Operation Mode: Automatic
• Coil Voltage: 32 Volts (DC)
• Contact Current Rating: 20 Amps
• Maximum Switching Current: 20 Amps
• Minimum Switching Voltage: 32 Volts (DC)
• Contact Material: Silver Alloy
• Manufacturer Part Number: RGC1A60D15KKE
• Manufacturer: Carlo Gavazzi
• Product Series: RGC1
• Family Series: Carlo Gavazzi Relays, RGC1 Series
• Description: Solid State Relay, 1-P, 15A, 600VAC, 4-32VDC Control, 42-600VAC Load, Zero Crossing, DIN Mnt, w/Heatsink
• Circuit: 1NO
• Mounting: Surface
• Status Indicator: Yes
• Auxiliary Switch: No
• Number of Circuits: 1
• Input Signal: 3-32 VDC
• Input Polarity: DC
• Output Voltage: 600 VAC
• Nominal Output Voltage: 600 VAC
• Termination: Screw Terminal
• Output Type: SCR AC Switch
• Switching Type: Zero Cross
• Integral Heat Sink: Yes
• MOV: Yes
• Snubber: No
• Product Type: CONTACTOR
• Vendor Item: RGC1A60D15KKE
• Vendor Short Name: CARLO
• RoHS Compliant: RoHS Compliant
• Suitable For: Solid-State Contactor
